SN751730NS

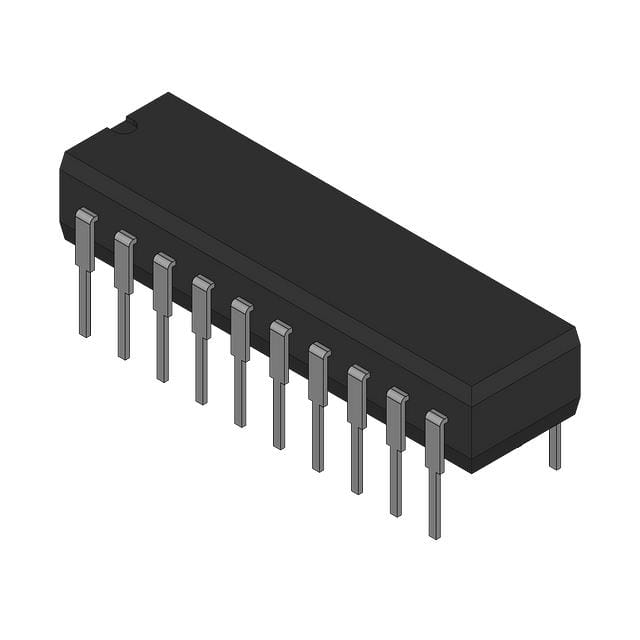

Triple Transmitter/Receiver IBM 360/IBM 370 20Pin SOP

description

The SN751730 triple line driver/receiver is specifically designed to meet the input/output interface specifications for IBM System 360/370. It also is compatible with standard TTL logic and supply voltage levels.

Meets or Exceeds the Requirements of IBM™ 360/370 Input/Output Interface Specification for 4.5-Mb/s Operation

Single 5-V Supply

Uncommitted Emitter-Follower Output Structure for Party-Line Operation

Driver Output Short-Circuit Protection

Driver Input/Receiver Output Compatible With TTL

Receiver Input Resistance . . . 7.4kΩ to 20kΩ

Ratio Specification for Propagation Delay Time, Low to High/High to Low
