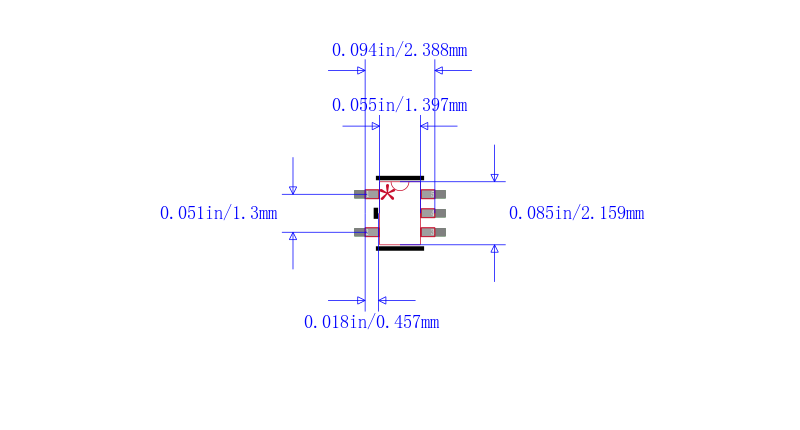

SN74LVC1G00DCK

单路2输入正与非门 SINGLE 2-INPUT POSITIVE-NAND GATE

Description

This single 2-input positive-NAND gate is designed for 1.65-V to 5.5-V VCC operation.

Features

• Available in the Ultra Small 0.64-mm2 Package DPW With 0.5-mm Pitch

• Supports 5-V VCC Operation

• Inputs Accept Voltages to 5.5 V

• Provides Down Translation to VCC

• Max tpd of 3.8 ns at 3.3 V

• Low Power Consumption, 10-μA Max ICC

• ±24-mA Output Drive at 3.3 V

• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Protection Exceeds JESD 22

  – 2000-V Human-Body Model A114-A

  – 1000-V Charged-Device Model C101



Applications

• AV Receiver

• Audio Dock: Portable

• Blu-ray Player and Home Theater

• Embedded PC

• MP3 Player/Recorder Portable Audio

• Personal Digital Assistant PDA

• Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital

• Solid State Drive SSD: Client and Enterprise

• TV: LCD/Digital and High-Definition HDTV

• Tablet: Enterprise

• Video Analytics: Server

• Wireless Headset, Keyboard, and Mouse
