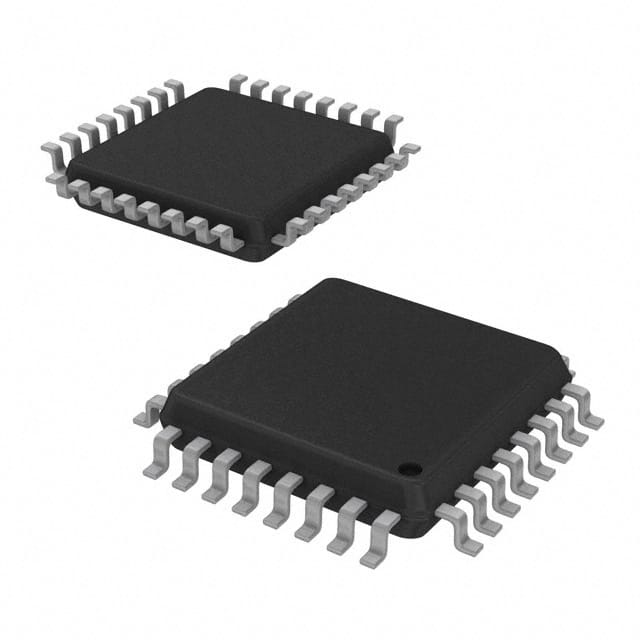

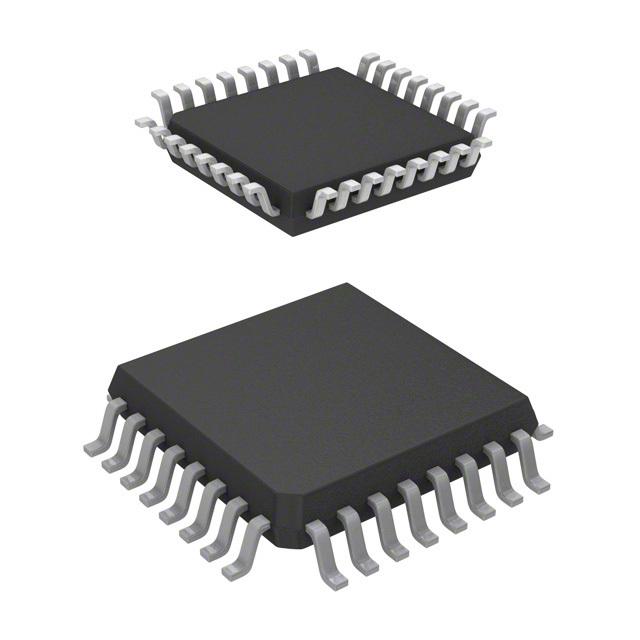

微控制器, 特定应用, S12 Magni V, S12ZVL系列, 16位, 128KB, 32MHz, LQFP-32
Overview
The S12ZVL platform, part of the S12 MagniV mixed-signal MCU product line, offers a low-cost, highly integrated solution for space-constrained automotive LIN nodes. With memory sizes from 8-128K flash, the family provides scalability for platform standardization.
The S12ZVL integrates a sophisticated S12Z core with a 12 V to 5 V voltage regulator and a LIN physical layer transceiver for automotive and industrial applications such as sensor interfaces, actuators, switch panels or ambient lighting.
MoreLess
## Features
* S12Z core - 32 MHz bus speed
* Up to 128 KB Flash with ECC
* Up to 2KB EEPROM with ECC
* Up to 8 KB RAM with ECC
* Analog comparator and DAC
* PGA
* 12V Vreg to supply device + ext comp- 70mA total 170mA with ext. Ballast
* LIN physical layer
* On-chip RC-oscillator trimmed to 1.3% accuracy, no ext xtal required on LIN
* Ultra-Reliable MCUs
