SN74ALVC16245DL

16Bit Bus Transceiver With 3-State Outputs 48-SSOP -40℃ to 85℃

description

The SN74ALVC16245 16-bit dual-octal noninverting bus transceiver is designed for 2.3-V to 3.6-V VCCoperation; it is tested at 2.5-V, 2.7-V, and 3.3-V VCC.

The SN74ALVC16245 is designed for asynchronous communication between data buses. The control-function implementation minimizes external timing requirements.

EPICEnhanced-Performance Implanted CMOS Submicron Process

Member of the Texas Instruments WidebusFamily

ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model

C = 200 pF, R = 0

Latch-Up Performance Exceeds 250 mA Per JEDEC Standard JESD-17

Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors

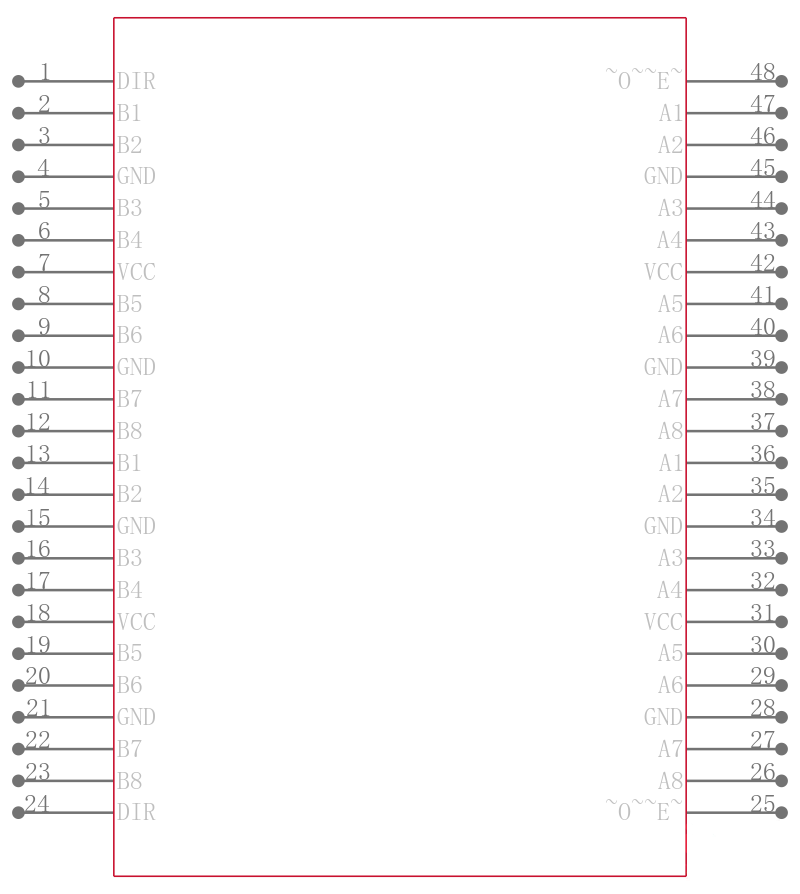

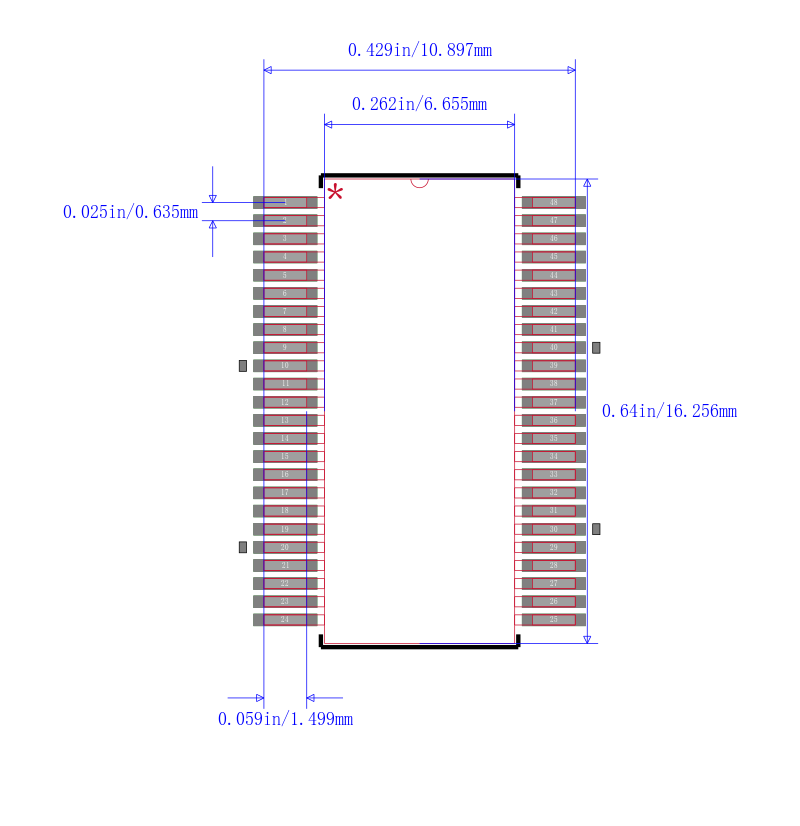

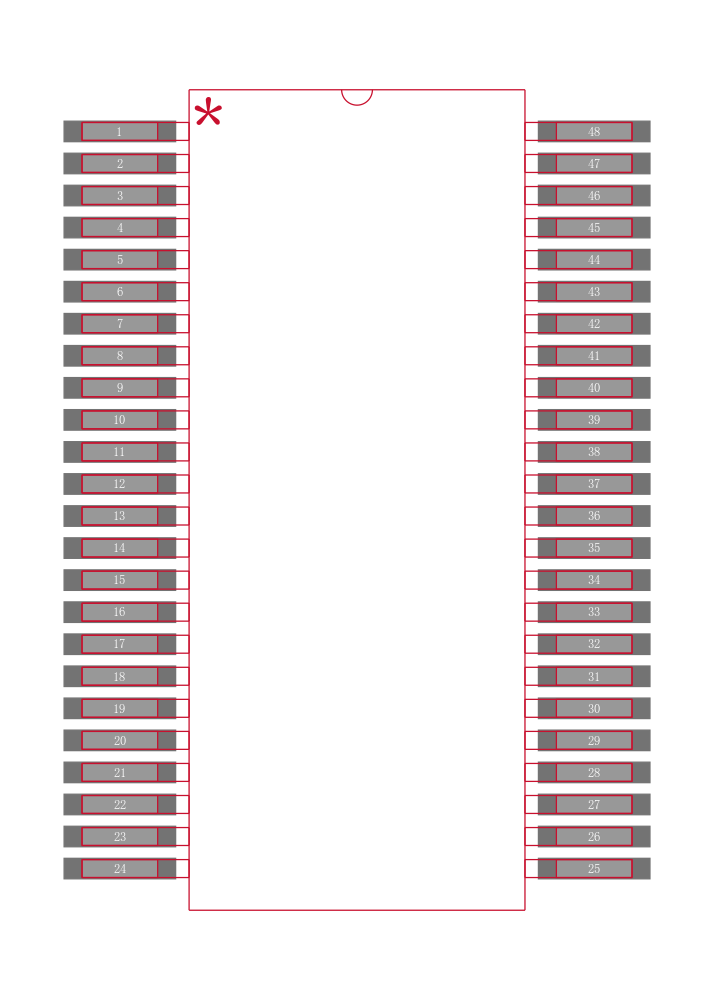

Package Options Include Plastic 300-mil Shrink Small-Outline DL and Thin Shrink Small-Outline DGG Packages
