8位移位寄存器具有三态输出寄存器 8-BIT SHIFT REGISTERS WITH 3-STATE OUTPUT REGISTERS

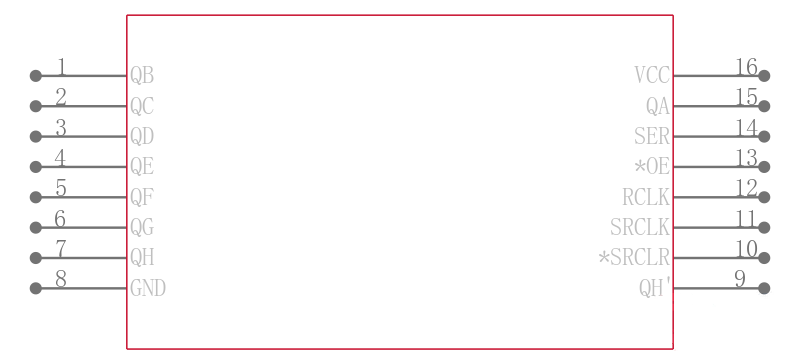

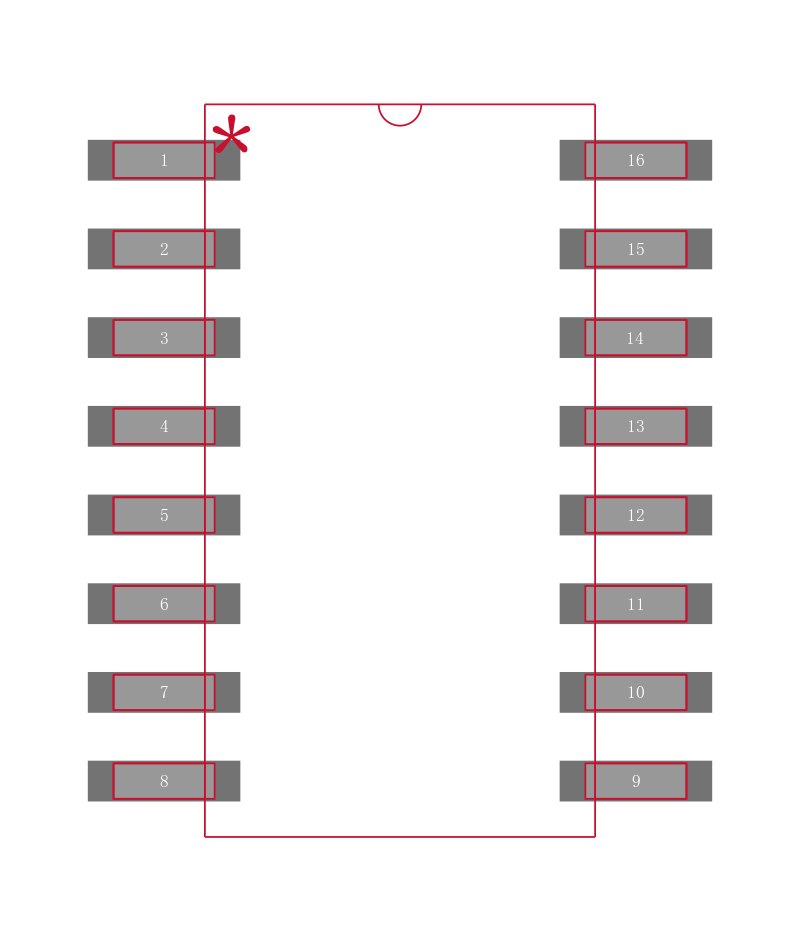

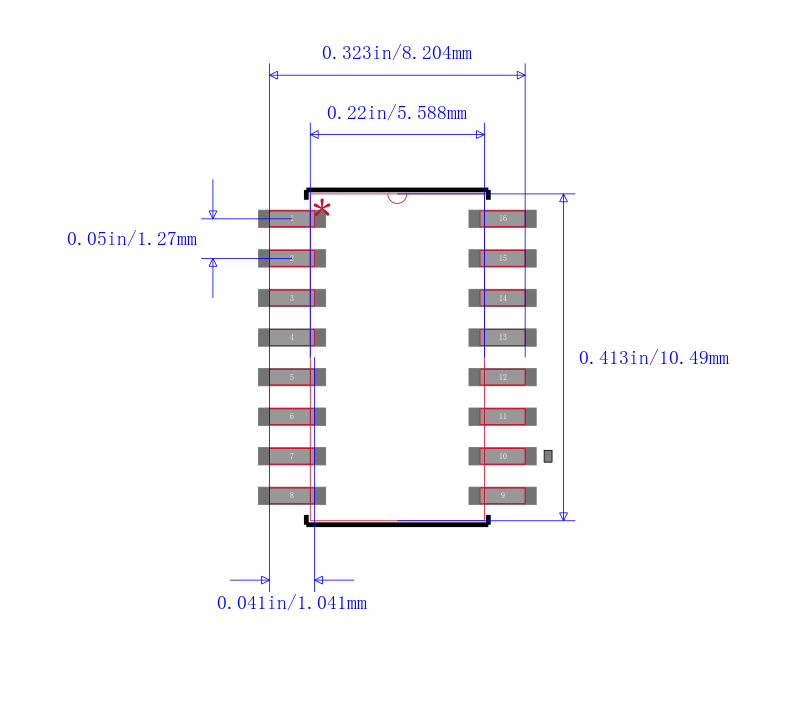

Description
The SN74LV595A device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Both the shift register clock SRCLK and storage register clock RCLK are positive-edge triggered.
Features
• 2-V to 5.5-V VCC Operation
• Max tpd of 7.1 ns at 5 V
• Typical VOLP Output Ground Bounce
< 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV Output VOH Undershoot
> 2.3 V at VCC = 3.3 V, TA = 25°C
• Support Mixed-Mode Voltage Operation on All Ports
• 8-Bit Serial-In, Parallel-Out Shift
• Ioff Supports Live Insertion, Partial Power-Down Mode, and Back-Drive Protection
• Shift Register Has Direct Clear
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model
– 200-V Machine Model
– 1000-V Charged-Device Model
Applications
• Network Switches
• Power Infrastructures
• PCs and Notebooks
• LED Displays
• Servers
• I/O Expanders
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LV595ANSRE4 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV595ANSRG4 德州仪器 | 完全替代 | SN74LV595ANSRE4和SN74LV595ANSRG4的区别 |
SN74LV595ANSR 德州仪器 | 类似代替 | SN74LV595ANSRE4和SN74LV595ANSR的区别 |
