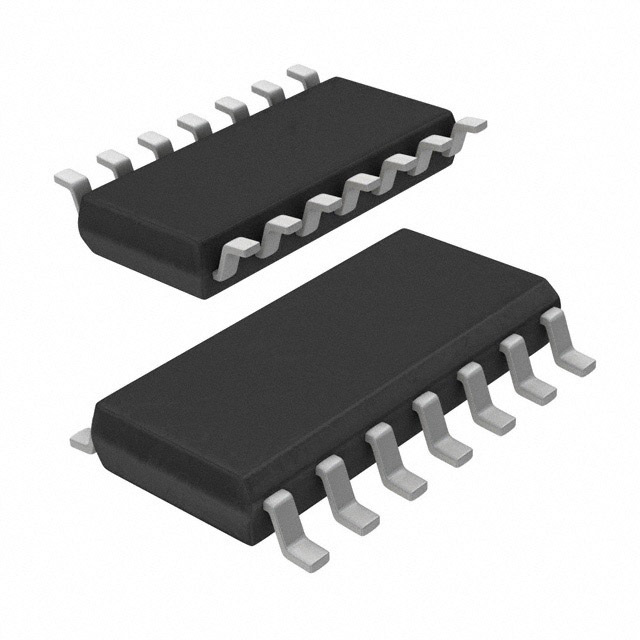

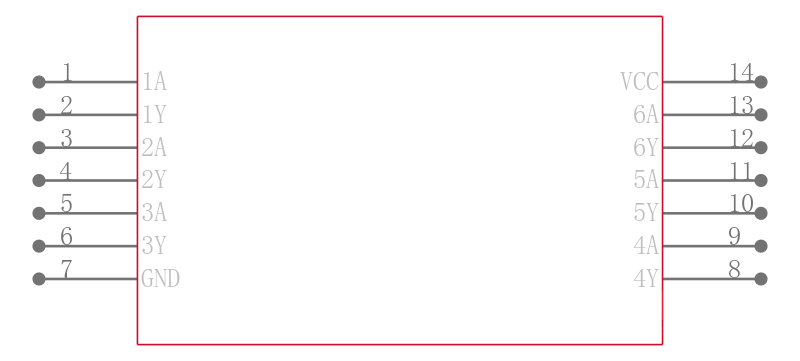

SN74LV07ADRE4

HEX缓冲器/带漏极开路输出驱动程序 HEX BUFFERS/DRIVERS WITH OPEN-DRAIN OUTPUTS

description/ordering information

These hex buffers/drivers are designed for 2-V to 5.5-V VCCoperation.

The ’LV07A devices perform the Boolean function Y = A in positive logic.

The open-drain outputs require pullup resistors to perform correctly and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.

2-V to 5.5-V VCCOperation

Typical VOLPOutput Ground Bounce  <0.8 V at VCC = 3.3 V, TA= 25°C

Typical VOHVOutput VOHUndershoot  >2.3 V at VCC = 3.3 V, TA= 25°C

Outputs Are Disabled During Power Up and Power Down With Inputs Tied to VCC

Support Mixed-Mode Voltage Operation on All Ports

Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

ESD Protection Exceeds JESD 22

− 2000-V Human-Body Model A114-A

− 200-V Machine Model A115-A

− 1000-V Charged-Device Model C101
