SN74LVC08APWLE

四路2输入正与门 QUADRUPLE 2-INPUT POSITIVE-AND GATES

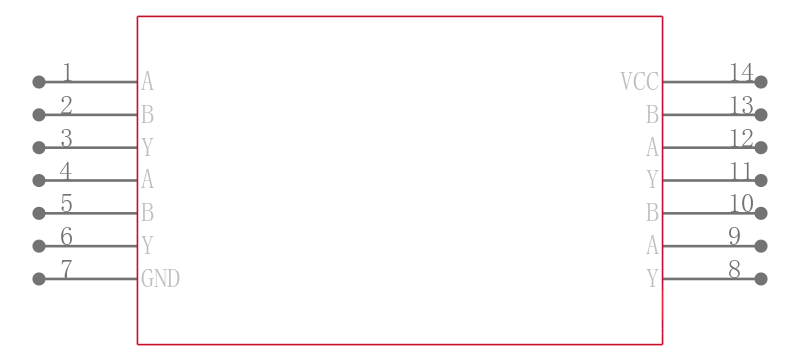

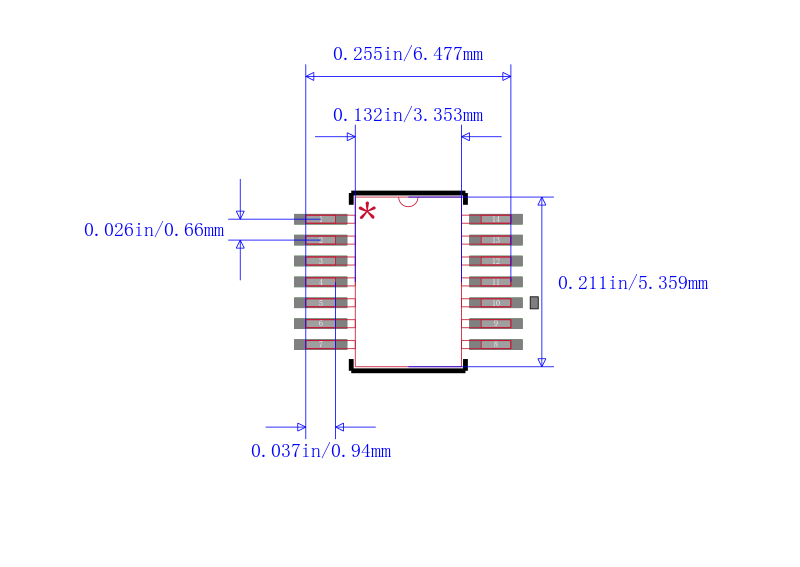

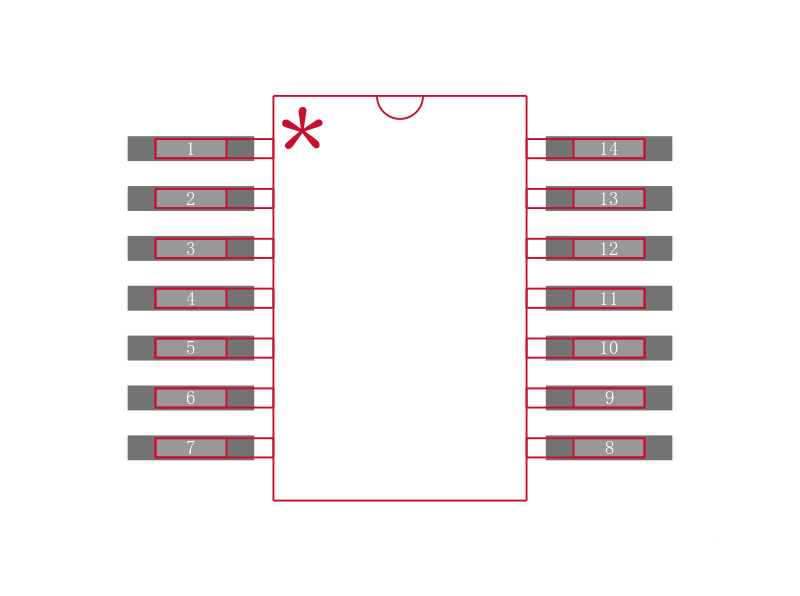

DESCRIPON/ORDERING INFORMATION

The SN54LVC08A quadruple 2-input positive-AND gate is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC08A quadruple 2-input positive-AND gate is designed for 1.65-V to 3.6-V VCC operation.

FEATURES

• Operate From 1.65 V to 3.6 V

• Specified From –40°C to 85°C, –40°C to 125°C, and –55°C to 125°C

• Inputs Accept Voltages to 5.5 V

• Max tpd of 4.1 ns at 3.3 V

• Typical VOLP Output Ground Bounce <0.8 V at VCC= 3.3 V, TA= 25°C

• Typical VOHV Output VOH Undershoot >2 V at VCC = 3.3 V, TA = 25°C

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model A114-A

– 200-V Machine Model A115-A

– 1000-V Charged-Device Model C101
