SN75ALS176

差动总线收发器

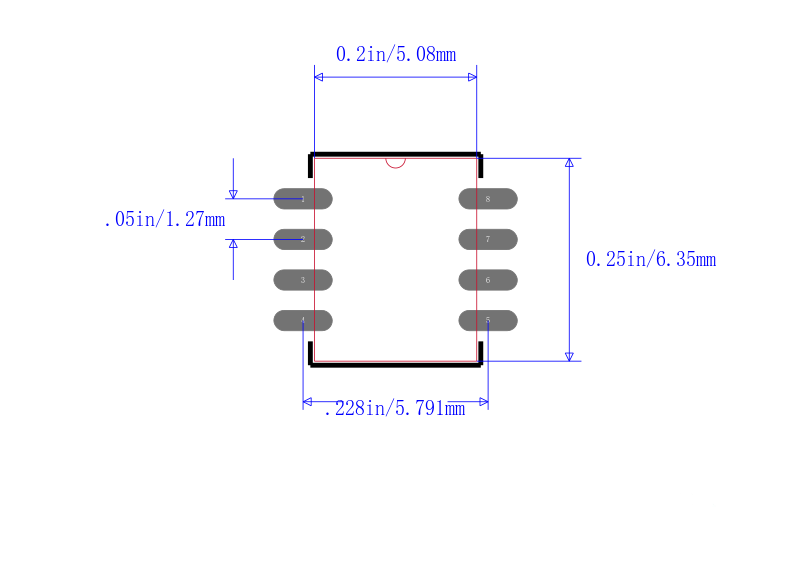

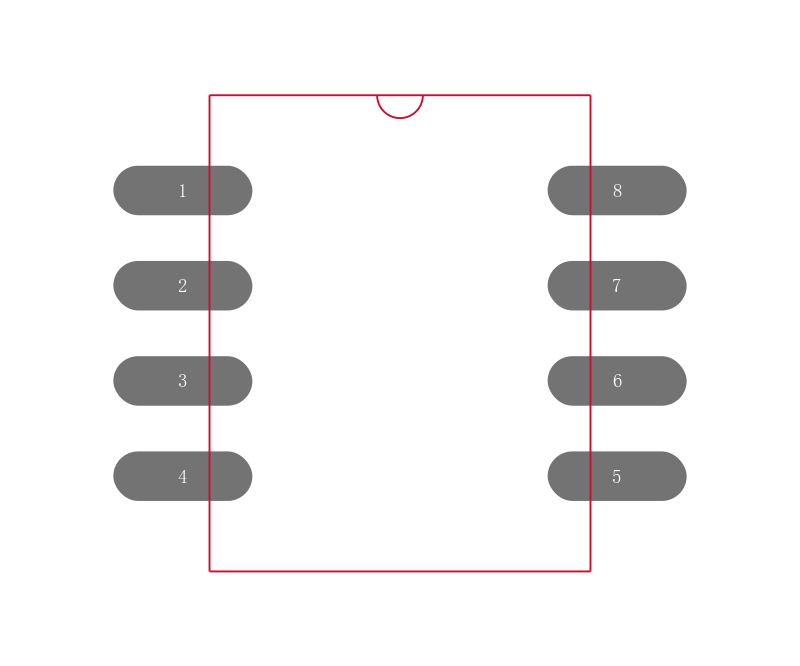

The SN65ALS176 and series differential bus transceivers are designed for bidirectional data communication on multipoint bus transmission lines. They are designed for balanced transmission lines and meet A/EIA-422-B, TIA/EIA-485-A, and ITU Recommendations V.11 and X.27.

The SN65ALS176 and SN75ALS176 series combine a 3-state, differential line driver and a differential input line receiver, both of which operate from a single 5-V power supply. The driver and receiver have active-high and active-low enables, respectively, that can be connected together externally to function as a direction control. The driver differential outputs and the receiver differential inputs are connected internally to form a differential input/output I/O bus port that is designed to offer minimum loading to the bus when the driver is disabled or VCC = 0. This port features wide positive and negative common-mode voltage ranges, making the device suitable for party-line applications.

The SN65ALS176 is characterized for operation from -40°C to 85°C. The SN75ALS176 series is characterized for operation from 0°C to 70°C.

.

Meet or Exceed the Requirements of TIA/EIA-422-B, TIA/EIA-485-A and ITU Recommendations V.11 and X.27

.

Operate at Data Rates up to 35 Mbaud

.

Four Skew Limits Available:

.

SN65ALS176...15 ns

.

SN75ALS176...10 ns

.

SN75ALS176A...7.5 ns

.

SN75ALS176B...5 ns

.

Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments

.

Low Supply-Current Requirements

...30 mA Max

.

Wide Positive and Negative Input/Output Bus-Voltage Ranges

.

Thermal Shutdown Protection

.

Driver Positive and Negative Current Limiting

.

Receiver Input Hysteresis

.

Glitch-Free Power-Up and Power-Down Protection

.

Receiver Open-Circuit Fail-Safe Design
