八路缓冲器/带集电极开路输出驱动程序 OCTAL BUFFERS/DRIVERS WITH OPEN-COLLECTOR OUTPUTS
description
These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
• Open-Collector Version of ′BCT244
• Open-Collector Outputs Drive Bus Lines or Buffer Memory Address Registers
• ESD Protection Exceeds 2000 V Per MIL-STD-883C Method 3015
• Packages Options Include Plastic
Small-Outline DW Packages, Ceramic Chip Carriers FK and Flatpacks W, and Standard Plastic and Ceramic 300-mil DIPs J, N
电源电压DC 4.50V ~ 5.50V
输出接口数 8
通道数 8
传送延迟时间 10.0 ns
电压波节 5.00 V
静态电流 48 mA
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

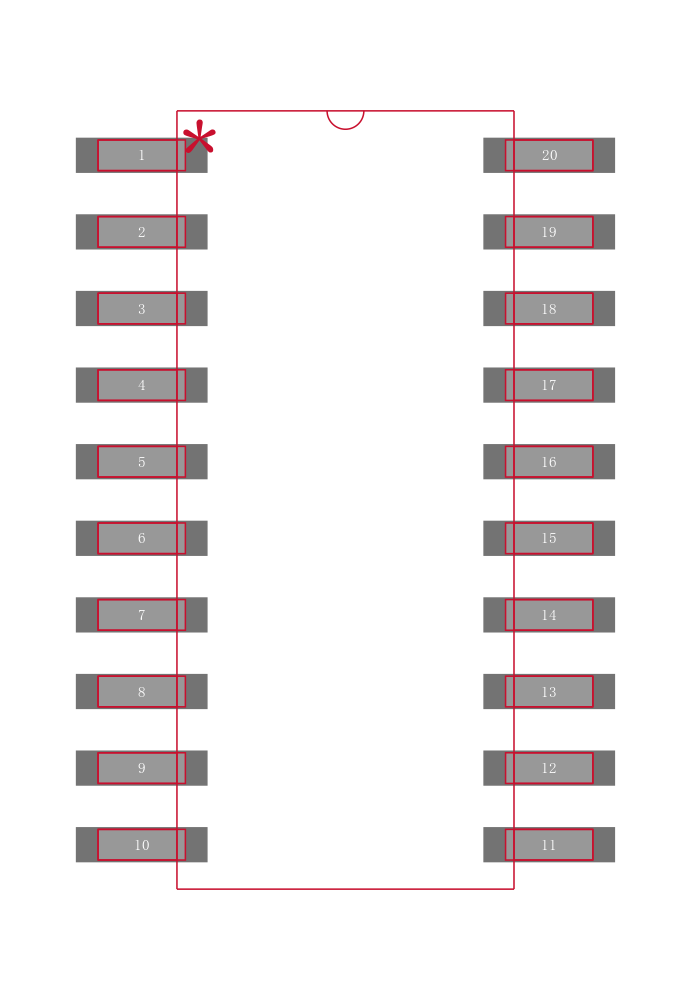

引脚数 20

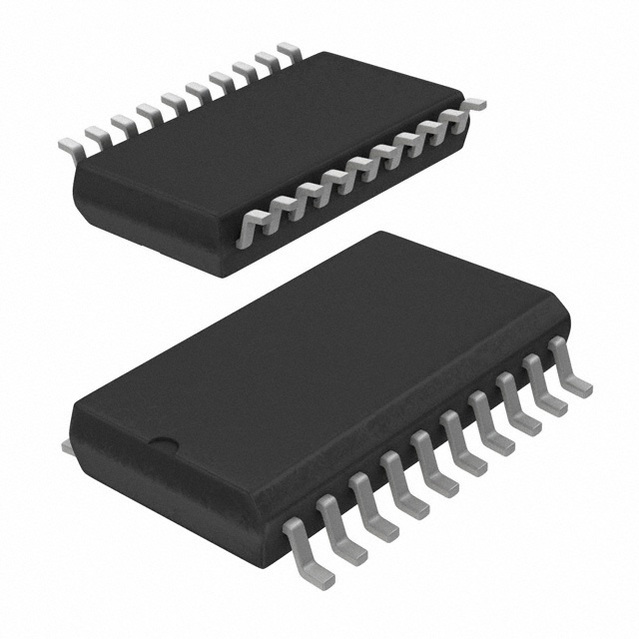

封装 SOP-20

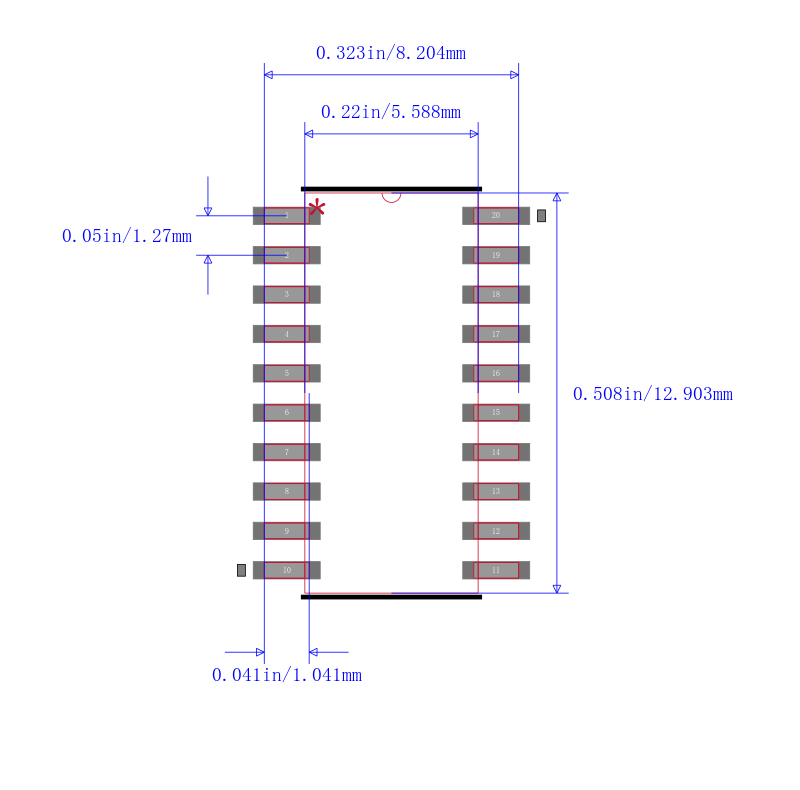

长度 12.6 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-20
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
