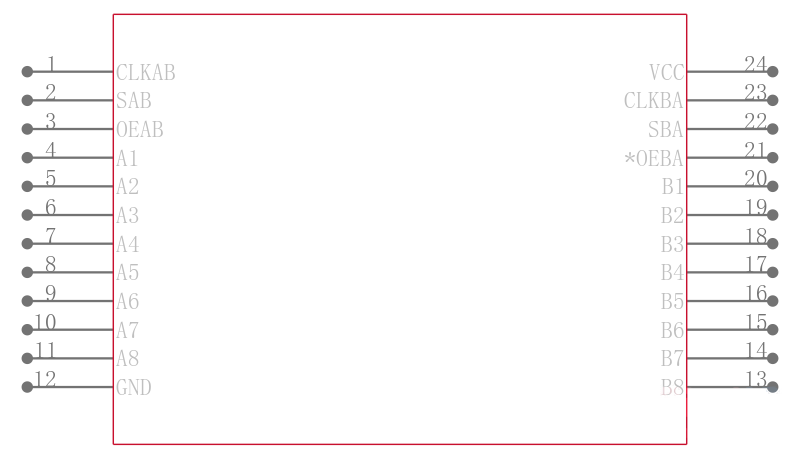

SN74BCT652DWRG4

八路总线收发器和寄存器具有三态输出 OCTAL BUS TRANSCEIVERS AND REGISTERS WITH 3-STATE OUTPUTS

description

These devices consist of bus transceiver circuits, D-type flip-flops, and control circuitry arranged for

 multiplexed transmission of data directly from the data bus or from the internal storage registers.

State-of-the-Art BiCMOS Design Significantly Reduces ICCZ

ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model C = 200 pF, R = 0

Independent Registers and Enables for A and B Buses

Multiplexed Real-Time and Stored Data

Power-Up High-Impedance Mode

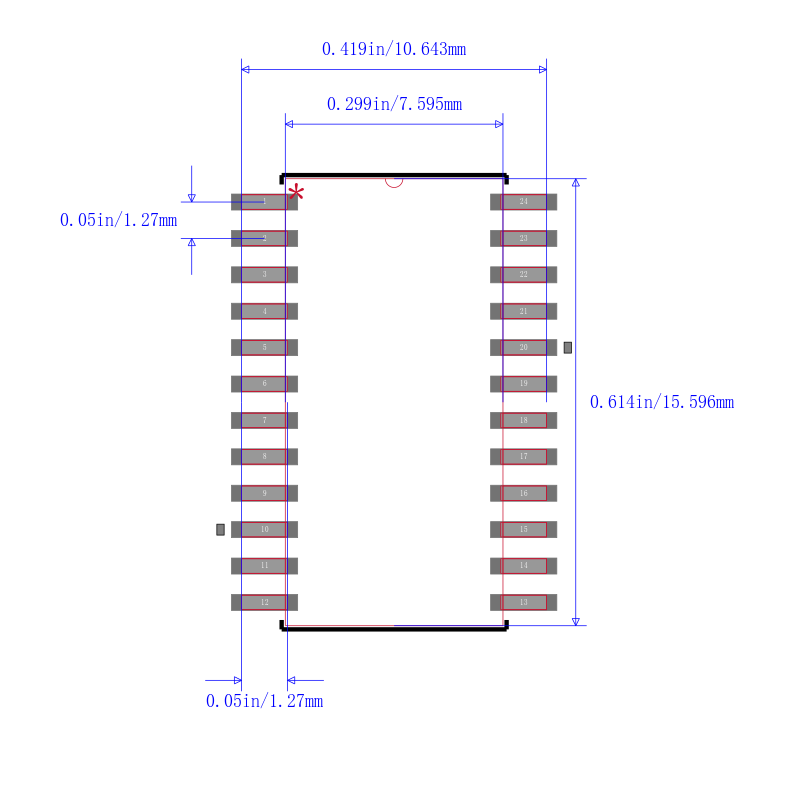

Package Options Include Plastic Small-Outline DW Packages, Ceramic Chip Carriers FK and Flatpacks W, and Standard Plastic and Ceramic 300-mil DIPs JT, NT
