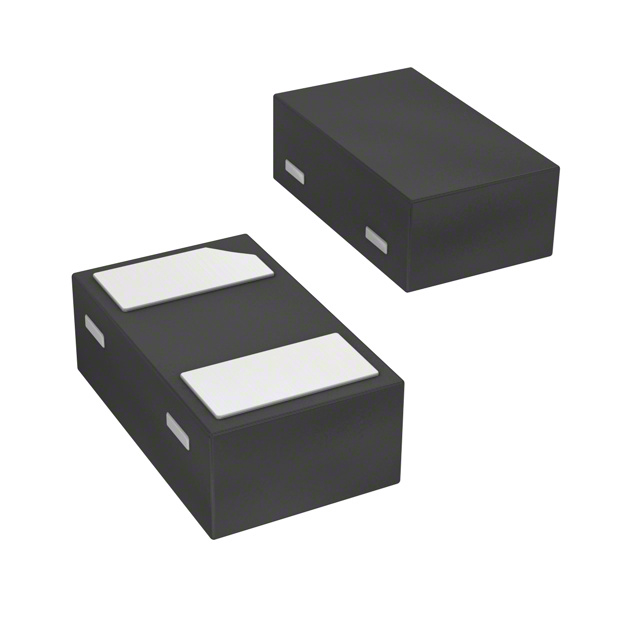

SZESD7462N2T5G

超低电容ESD保护二极管

The ESD7462 is designed to protect voltage sensitive components that require ultra−low capacitance from ESD and transient voltage events. It has industry leading capacitance linearity over voltage making it ideal for RF applications. This capacitance linearity combined with the extremely small package and low insertion loss makes this part well suited for use in antenna line applications for wireless handsets and terminals.

Features

---

 |

.

Industry Leading Capacitance Linearity Over Voltage

.

Ultra−Low Capacitance: 0.3 pF Typ

.

Insertion Loss: 0.05 dB at 1 GHz; 0.21 dB at 3 GHz

.

Low Leakage: < 1 nA

.

IEC61000−4−2 ESD: Level 4 ±15 kV Contact

.

IEC61000−4−4 EFT: 40 A −5/50 ns

.

IEC61000−4−5 Lightning: 1 A 8/20 s

.

ISO 10605 ESD 330 pF/2 k ±20 kV Contact
