SSM6322ACPZ-R2

Audio Amp Speaker 2CH Stereo Class-AB 24Pin LFCSP EP T/R

Product Details

The SSM6322 is an integrated, dual-channel audio amplifier solution that interfaces directly with audio DAC/CODEC, maximizing the fidelity of high fidelity audio signal chains. The highly efficient design of the SSM6322 delivers outstanding audio performance while minimizing power dissipation for maximum battery life in portable applications.

The SSM6322 features −121 dB THD + N at 1 kHz, along with very low output noise from 20 Hz to 20 kHz. The low power operation, high peak output current, and high PSRR make the SSM6322 an ideal candidate for applications that require high fidelity audio, high dynamic range, precision, and low power. This highly integrated drive solution also reduces development time while reducing board space and minimizing external components.

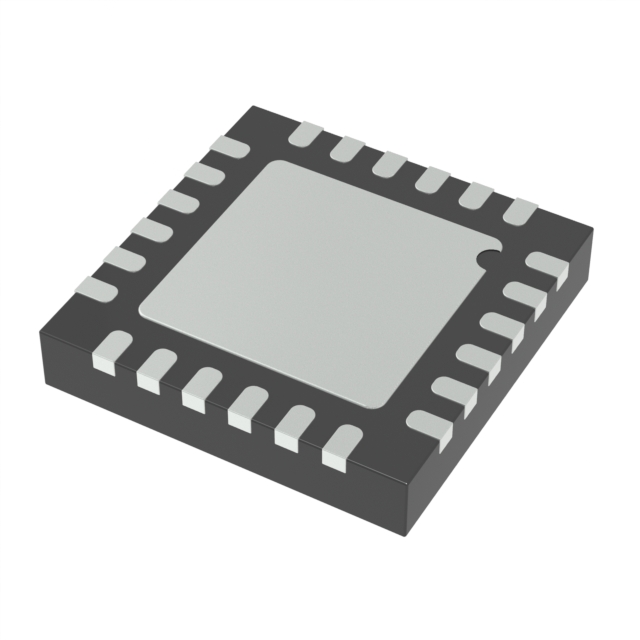

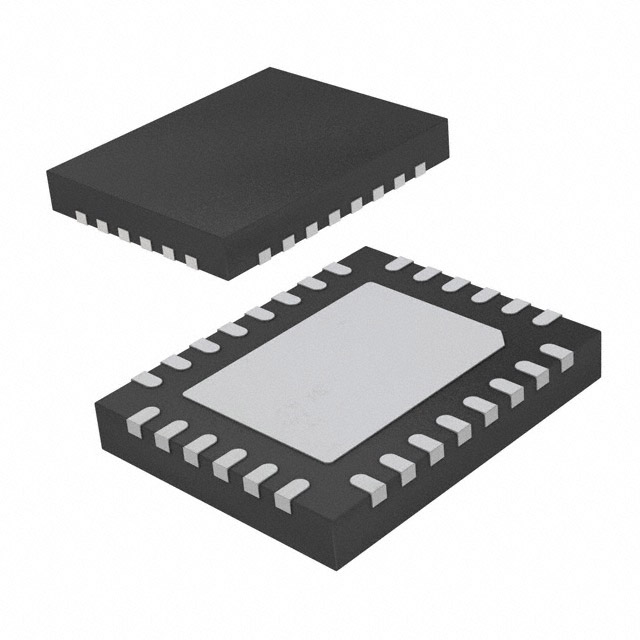

The SSM6322 is available in a 24-lead LFCSP package. The SSM6322 operates over the industrial temperature of −40°C to +85°C.

Applications

.

High fidelity headphone driver

.

Mobile phones

.

Bluetooth speakers & headphones

.

Gaming Notebooks and Tablets

.

A/V receivers

.

Professional audio equipment

.

Audio test equipment

.

Automobile infotainment system

### Features and Benefits

.

Flexible architecture to interface with all digital-to-analog converters DACs

.

Accepts differential current or voltage input provides single-ended voltage output

.

High output current drive capability

.

Greater than 100 mA rms output current

.

Accurately reproduces large music transients into heavy loads 16 Ω to 32 Ω

.

Excellent audio fidelity

.

−121 dB total harmonic distortion plus noise THD + N at 1 kHz, 2 V rms output with ±5 V supply and 32 Ω load

.

Low output integrated noise 10 Hz to 22 kHz of 1.8 μV rms with A-weighted filter

.

Supply range: ±3.3 V to ±6 V typical

.

Low power operation

.

Enabled: 60 mW, VCC = +5 V, VEE = −5 V

.

Disabled/voice select: <30 μA

.

Low power disable mode with high output impedance

.

High-Z in power-down mode eliminating voice mode switch from the high fidelity path

.

Greater than 87 dB power supply rejection ratio PSRR at 20 kHz

.

Adjustable input common-mode voltage with resistor programmable reference voltage

.

1.45 V typical with no external components

.

Capable of two single-pole, low-pass filters in series

.

2.2 nF maximum input capacitor

.

Second filter between the GAINx and FILTx pins

.

Pop and click noise suppression

.

Signal chain integration supports small printed circuit board PCB area

.

Compact 4 mm × 4 mm LFCSP package
