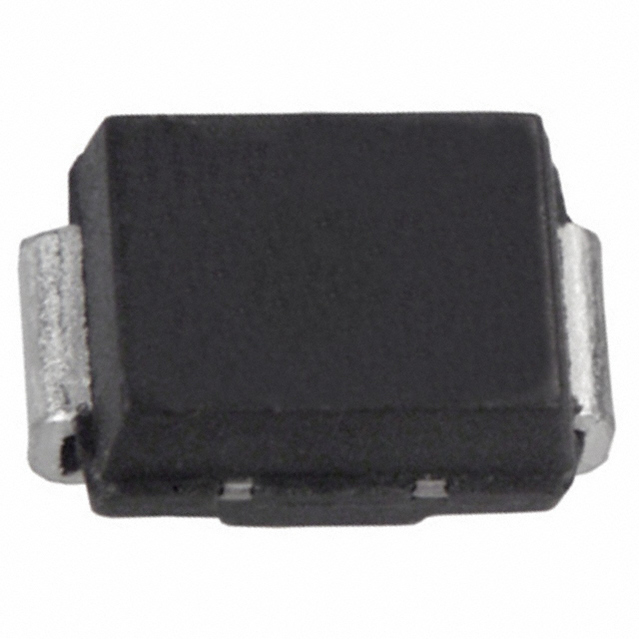

SMBJ17CA-13-F 编带
27.6V 夹子 21.7A Ipp TVS - 表面贴装型 SMB
得捷:
TVS DIODE 17VWM 27.6VC SMB
立创商城:
双向 Vrwm:17V 600W
贸泽:
TVS Diodes - Transient Voltage Suppressors 600W 17.0V
艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this SMBJ17CA-13-F TVS diode from Diodes Zetex. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This device&s;s maximum clamping voltage is 27.6 V and minimum breakdown voltage is 18.9 V. This TVS diode has an operating temperature range of -55 °C to 150 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
安富利:
Diode TVS Single Bi-Dir 17V 600W 2-Pin SMB T/R
Chip1Stop:
Diode TVS Single Bi-Dir 17V 600W 2-Pin SMB T/R
Verical:
Diode TVS Single Bi-Dir 17V 600W 2-Pin SMB T/R
Win Source:
TVS DIODE 17VWM 27.6VC SMB
额定电压DC 17.0 V
额定功率 600 W
击穿电压 21.7 V
电路数 1
耗散功率 600 W
钳位电压 27.6 V
测试电流 1 mA
脉冲峰值功率 600 W
最小反向击穿电压 18.9 V
击穿电压 18.9 V
工作温度Max 150 ℃
工作温度Min 55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 SMB
长度 4.57 mm
宽度 3.9 mm
高度 2.62 mm
封装 SMB
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMBJ17CA-13-F Diodes 美台 | 当前型号 | 当前型号 |
1SMB17CAT3G 安森美 | 功能相似 | SMBJ17CA-13-F和1SMB17CAT3G的区别 |
SMBJ17CA 力特 | 功能相似 | SMBJ17CA-13-F和SMBJ17CA的区别 |
P6SMB20CA 力特 | 功能相似 | SMBJ17CA-13-F和P6SMB20CA的区别 |
