Diode TVS Single Bi-Dir 75V 1.5kW Automotive 2Pin SMC T/R
夹子 Ipp TVS -
得捷:
TVS DIODE 75V 121V SMC
艾睿:
Implement surge protection with this SMCJ75CA-13 TVS diode from Diodes Zetex. Its peak pulse power dissipation is 1500 W. Its maximum leakage current is 5 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 121 V and minimum breakdown voltage is 83.3 V. This TVS diode has an operating temperature range of -55 °C to 150 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.
Chip1Stop:
Diode TVS Single Bi-Dir 75V 1.5KW 2-Pin SMC T/R
额定电压DC 75.0 V
额定功率 1.50 kW
钳位电压 121 V
最大反向电压（Vrrm） 75V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 83.3 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 SMC

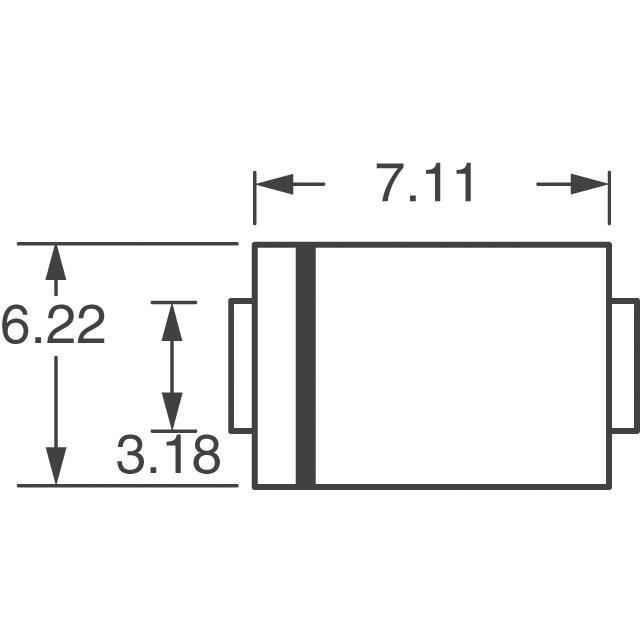

长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 SMC
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 Non-Compliant
含铅标准 Contains Lead
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMCJ75CA-13 Diodes 美台 | 当前型号 | 当前型号 |
SMCJ75CA-13-F 美台 | 完全替代 | SMCJ75CA-13和SMCJ75CA-13-F的区别 |
SMCJ75CA-TP 美微科 | 功能相似 | SMCJ75CA-13和SMCJ75CA-TP的区别 |
MXLSMCJ75CA 美高森美 | 功能相似 | SMCJ75CA-13和MXLSMCJ75CA的区别 |
