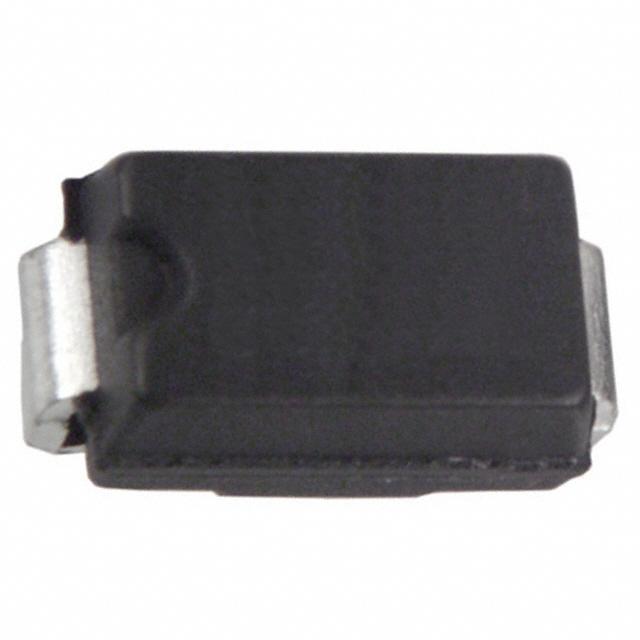

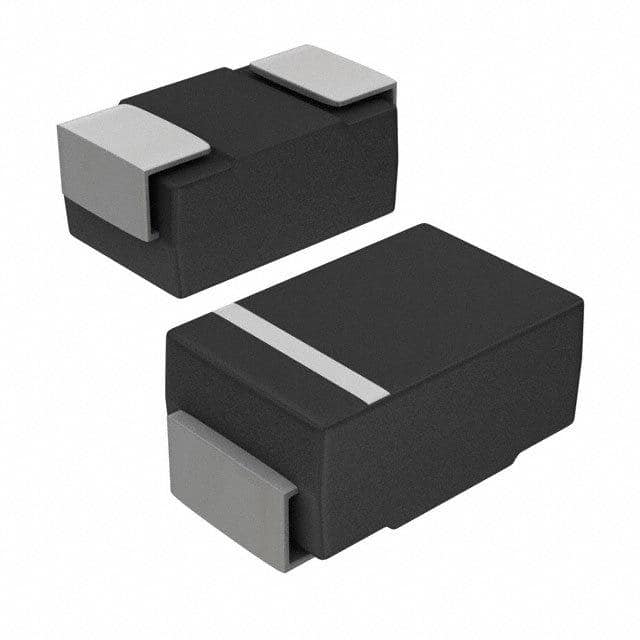

SMAJ13CA-13-F 编带
21.5V 夹子 18.6A Ipp TVS - 表面贴装型 SMA
得捷:
TVS DIODE 13VWM 21.5VC SMA
立创商城:
双向 Vrwm:13V
贸泽:
ESD 抑制器/TVS 二极管 400W 13V
艾睿:
Take the extra step in your circuitry by implementing surge protection with this SMAJ13CA-13-F TVS diode from Diodes Zetex. This device&s;s maximum clamping voltage is 21.5 V and minimum breakdown voltage is 14.4 V. Its maximum leakage current is 5 μA. Its test current is 1 mA. Its peak pulse power dissipation is 400 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.
安富利:
Diode TVS Single Bi-Dir 13V 400W 2-Pin SMA T/R
Chip1Stop:
Diode TVS Single Bi-Dir 13V 400W 2-Pin SMA T/R
Verical:
Diode TVS Single Bi-Dir 13V 400W 2-Pin SMA T/R
Win Source:
TVS DIODE 13VWM 21.5VC SMA
额定电压DC 13.0 V
工作电压 13 V
额定功率 400 W
击穿电压 14.4 V
电路数 1
耗散功率 400 W
钳位电压 21.5 V
测试电流 1 mA
脉冲峰值功率 400 W
最小反向击穿电压 14.4 V
击穿电压 14.4 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC-2
长度 4.6 mm
宽度 2.92 mm
高度 2.30 mm
封装 DO-214AC-2
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ13CA-13-F Diodes 美台 | 当前型号 | 当前型号 |
SMAJ13CA-13 美台 | 完全替代 | SMAJ13CA-13-F和SMAJ13CA-13的区别 |
CD214A-T13CA 伯恩斯 | 类似代替 | SMAJ13CA-13-F和CD214A-T13CA的区别 |
SMAJ13CA 力特 | 功能相似 | SMAJ13CA-13-F和SMAJ13CA的区别 |
