S3BB-13-F

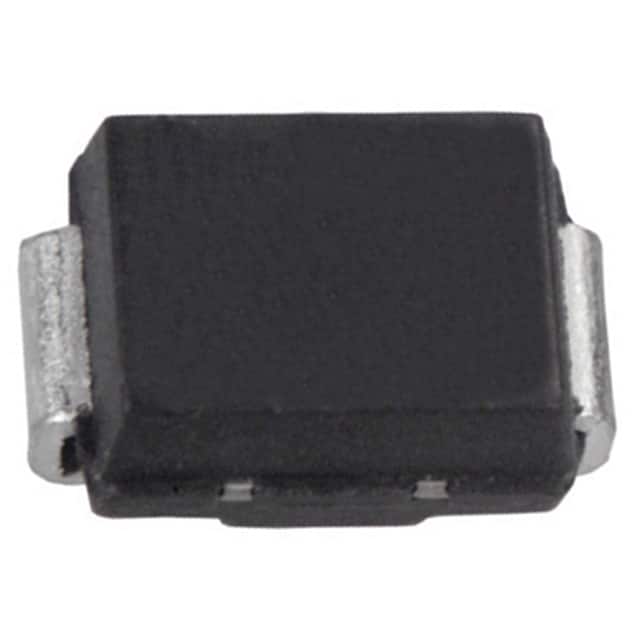

S3BB-13-F图片1
S3BB-13-F图片2
S3BB-13-F图片3
S3BB-13-F图片4
S3BB-13-F图片5
S3BB-13-F图片6
S3BB-13-F图片7
S3BB-13-F图片8
S3BB-13-F图片9
S3BB-13-F概述

S3BB-13-F 编带

标准 100 V 3A 表面贴装型 SMB


得捷:
DIODE GEN PURP 100V 3A SMB


立创商城:
100V 3A 1.15V@3A


e络盟:
标准恢复二极管, 100 V, 3 A, 单, 1.15 V, 100 A


艾睿:
Converting from AC to DC is simple when using a switching diode S3BB-13-F rectifier from Diodes Zetex. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its peak non-repetitive surge current is 100 A, while its maximum continuous forward current is 3 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration.


Allied Electronics:
Diode Switching 100V 3A 2Pin SMB


安富利:
Diode Switching 100V 3A 2-Pin SMB T/R


Chip1Stop:
Diode Switching 100V 3A 2-Pin SMB T/R


Verical:
Diode Switching 100V 3A Automotive 2-Pin SMB T/R


Newark:
# DIODES INC.  S3BB-13-F  Standard Recovery Diode, 100 V, 3 A, Single, 1.15 V, 100 A


S3BB-13-F中文资料参数规格
技术参数

额定电压DC 100 V

额定电流 3.00 A

电容 40.0 pF

输出电流 ≤3.00 A

针脚数 2

正向电压 1.15 V

极性 Standard

热阻 10℃/W RθJL

正向电流 3 A

最大正向浪涌电流(Ifsm) 100 A

正向电压Max 1.15 V

正向电流Max 3000 mA

工作温度Max 150 ℃

工作温度Min -65 ℃

封装参数

安装方式 Surface Mount

引脚数 2

封装 DO-214AA

外形尺寸

封装 DO-214AA

物理参数

工作温度 -65℃ ~ 150℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 国防, 自动化与过程控制, 军用与航空

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

军工级 Yes

REACH SVHC版本 2015/12/17

数据手册

S3BB-13-F引脚图与封装图
S3BB-13-F引脚图
S3BB-13-F封装图
S3BB-13-F封装焊盘图
在线购买S3BB-13-F
型号: S3BB-13-F
制造商: Diodes 美台
描述:S3BB-13-F 编带
替代型号S3BB-13-F
型号/品牌 代替类型 替代型号对比

S3BB-13-F

Diodes 美台

当前型号

当前型号

S3BB-13

美台

类似代替

S3BB-13-F和S3BB-13的区别

S3BB-TP

美微科

功能相似

S3BB-13-F和S3BB-TP的区别
