SMAJ5.0A-13-F

SMAJ5.0A-13-F 编带

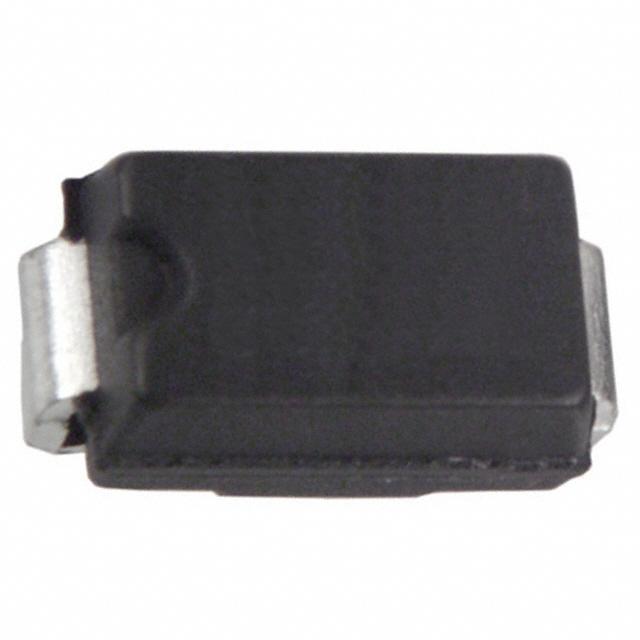

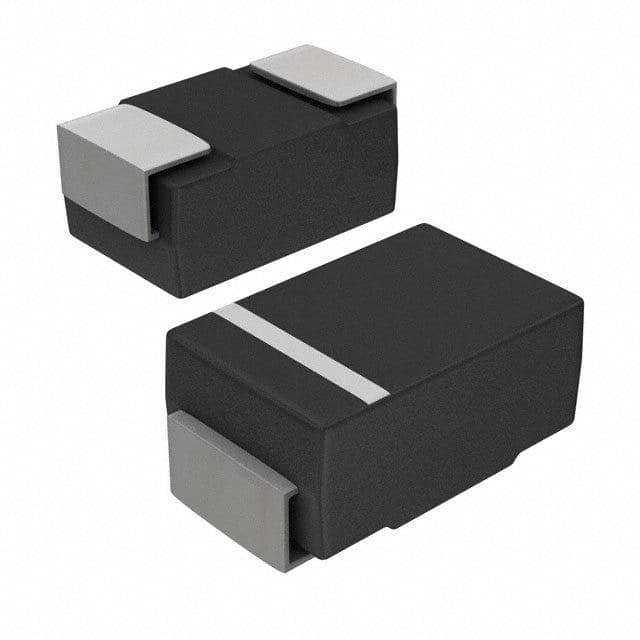

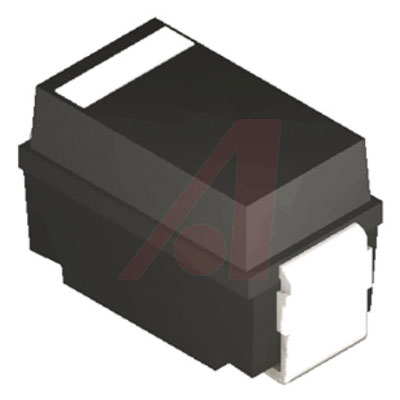

SMAJ5.0A Series 400 W 5 V Surface Mount Uni-Directional TVS Diode - DO-214AC

得捷:
TVS DIODE 5VWM 9.2VC SMA

立创商城:
单向 Vrwm:5V

贸泽:
ESD 抑制器/TVS 二极管 400W 5.0V

e络盟:
TVS二极管, TRANSZORB SMAJ系列, 单向, 5 V, 9.2 V, SMD, 2 引脚

艾睿:
Implement surge protection with this SMAJ5.0A-13-F TVS diode from Diodes Zetex. Its test current is 10 mA. Its peak pulse power dissipation is 400 W. Its maximum leakage current is 800 μA. This device&s;s maximum clamping voltage is 9.2 V and minimum breakdown voltage is 6.4 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

Allied Electronics:
Diode TVS Single UniDir 5V 400W 2Pin

Jameco:
SMAJ5.0A-13-F,PROTECTION TVS U NIDIRECTIONAL SENSOR-PEIZORES

安富利:
Diode TVS Single Uni-Dir 5V 400W 2-Pin SMA T/R

Chip1Stop:
Diode TVS Single Uni-Dir 5V 400W 2-Pin SMA T/R

Verical:
Diode TVS Single Uni-Dir 5V 400W 2-Pin SMA T/R

Newark:
# DIODES INC.  SMAJ5.0A-13-F  TVS Diode, SMAJ Series, Unidirectional, 5 V, 9.2 V, SMD, 2 Pins

儒卓力:
**TVS-DIODE UNI 0,4KW 6,8V SMA **

Win Source:
TVS DIODE 5VWM 9.2VC SMA
