SBR6100CTL-13

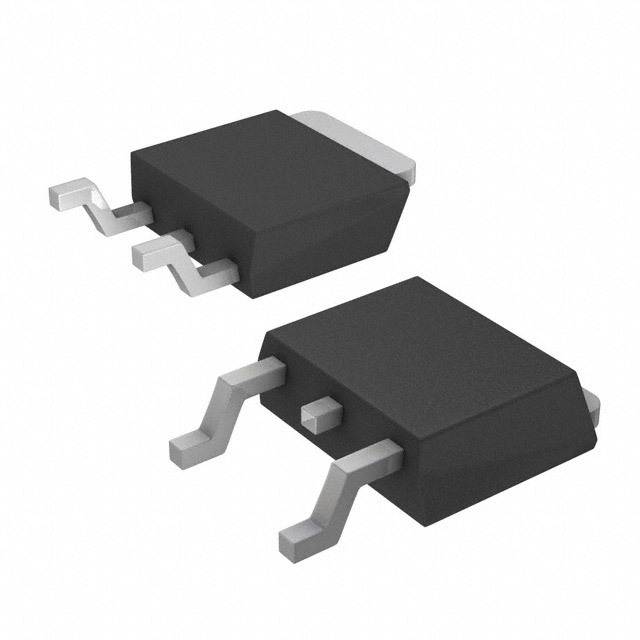

SBR6100CTL-13图片1

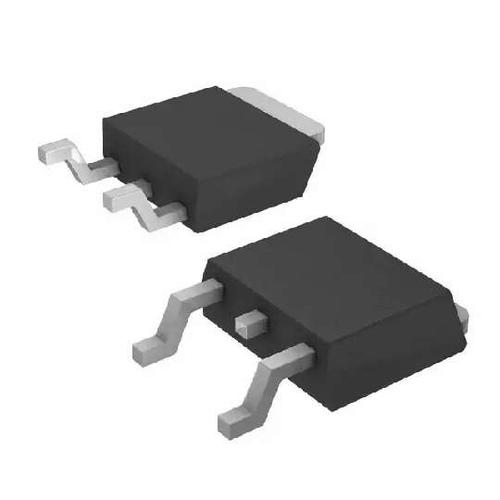

SBR6100CTL-13图片2
SBR6100CTL-13图片3
SBR6100CTL-13图片4
SBR6100CTL-13图片5
SBR6100CTL-13图片6
SBR6100CTL-13图片7
SBR6100CTL-13图片8
SBR6100CTL-13图片9
SBR6100CTL-13图片10
SBR6100CTL-13图片11
SBR6100CTL-13图片12
SBR6100CTL-13图片13
SBR6100CTL-13图片14
SBR6100CTL-13概述

二极管与整流器

与整流器


立创商城:
100V 680mV@3A 200μA@100V


得捷:
DIODE ARRAY SBR 100V 3A TO252


艾睿:
Switch from an AC voltage to a DC voltage using a super barrier rectifier SBR6100CTL-13 rectifier from Diodes Zetex. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its peak non-repetitive surge current is 78 A, while its maximum continuous forward current is 6 A. It is made in a dual common cathode configuration. This rectifier has an operating temperature range of -65 °C to 150 °C.


Allied Electronics:
6A 100V Super Barrier Rectifier DPAK


安富利:
Diode Schottky 100V 6A 3-Pin2+Tab DPAK T/R


Chip1Stop:
Diode Super Barrier Rectifier 100V 6A Automotive 3-Pin2+Tab DPAK T/R


Verical:
Diode Switching 100V 6A Automotive 3-Pin2+Tab DPAK T/R


儒卓力:
**SBR-D. 100V 6A 0.68V TO252-2 **


Win Source:
DIODE ARRAY SBR 100V 3A TO252


SBR6100CTL-13中文资料参数规格
技术参数

正向电压 0.74 V

正向电流 6000 mA

最大正向浪涌电流(Ifsm) 78 A

正向电压Max 740mV @3A

正向电流Max 6000 mA

工作温度Max 150 ℃

工作温度Min -65 ℃

封装参数

安装方式 Surface Mount

引脚数 3

封装 TO-252-3

外形尺寸

长度 6.8 mm

宽度 6.2 mm

高度 2.4 mm

封装 TO-252-3

物理参数

工作温度 -65℃ ~ 150℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买SBR6100CTL-13
型号: SBR6100CTL-13
制造商: Diodes 美台
描述:二极管与整流器
替代型号SBR6100CTL-13
型号/品牌 代替类型 替代型号对比

SBR6100CTL-13

Diodes 美台

当前型号

当前型号

SBR6100CTLQ-13

美台

类似代替

SBR6100CTL-13和SBR6100CTLQ-13的区别
