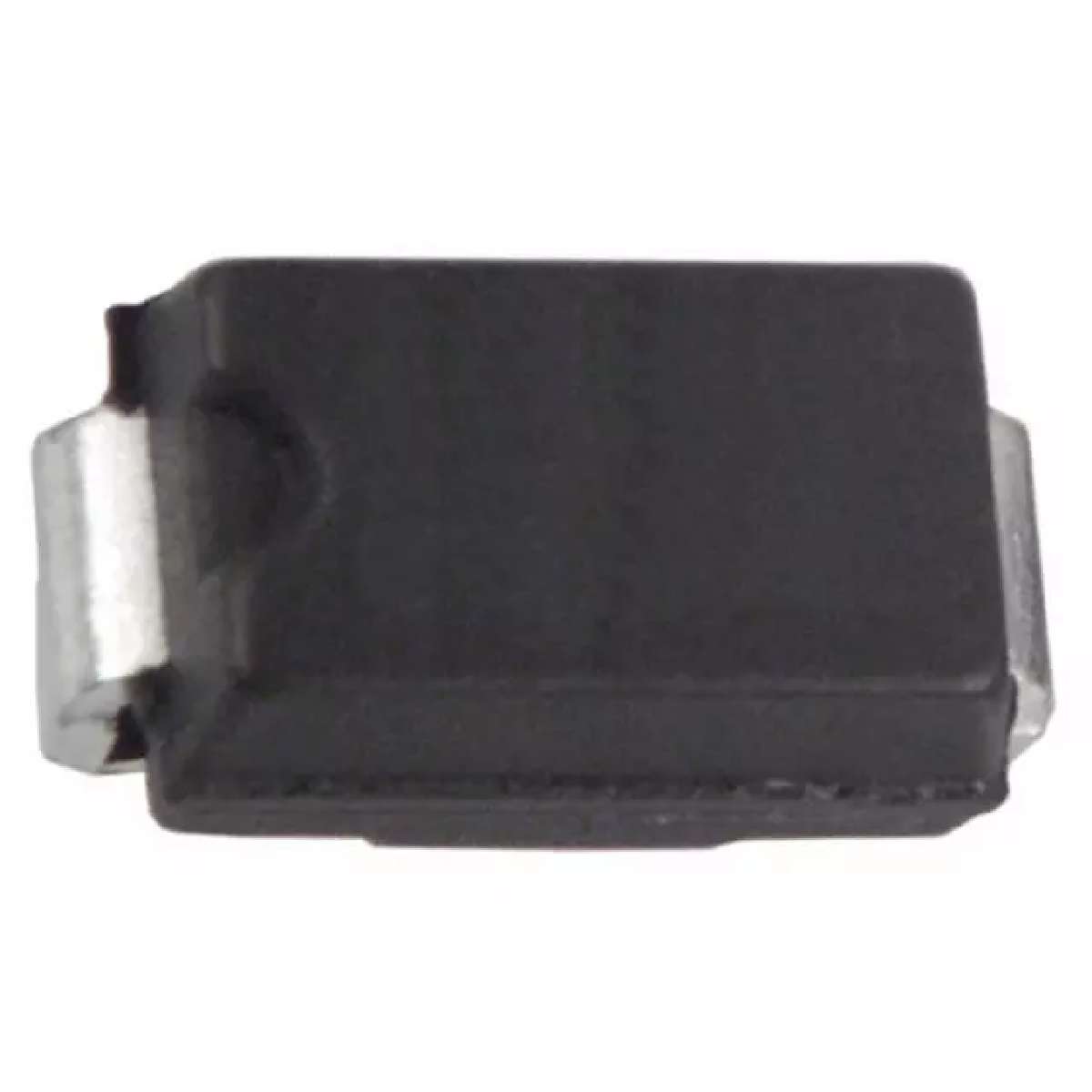

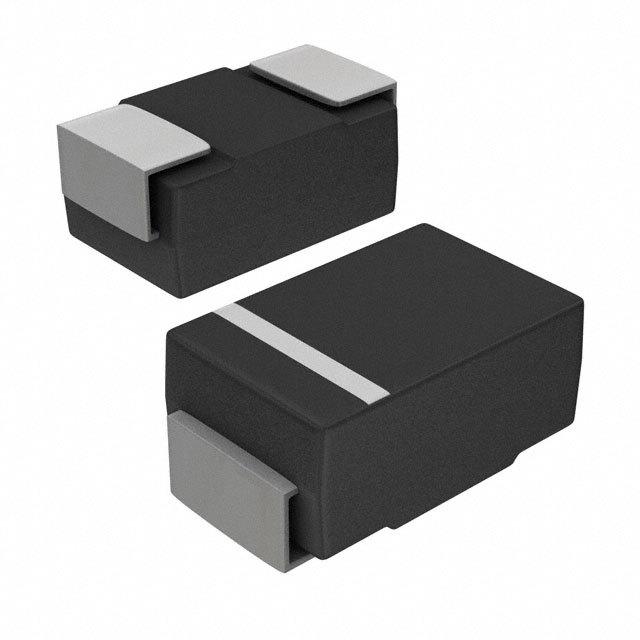

SMAZ30-13-F 编带
- 齐纳 ±5% 表面贴装型 SMA
得捷:
DIODE ZENER 30V 1W SMA
立创商城:
30V ±5% 1W
贸泽:
Zener Diodes 30V 1W
e络盟:
单管二极管 齐纳, 30 V, 1 W, DO-214AC, 5 %, 2 引脚, 150 °C
艾睿:
This SMAZ30-13-F zener diode from Diodes Zetex is perfect for blocking a voltage. Its test current is 25 mA. Its maximum leakage current is 0.5 μA. This device has a maximum regulator current of 33 mA. Its maximum power dissipation is 1000@Ta=50C mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It is made in a single configuration. This zener device has a nominal voltage of 30 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C.
Allied Electronics:
Diode Zener Single 30V 5% 1W 2Pin SMA
安富利:
Diode Zener Single 30V 5% 1W 2-Pin SMA T/R
富昌:
SMAZ30-13 系列 1 W 30 V 200 mA 表面贴装 齐纳二极管 - DO-214AC
Chip1Stop:
Diode Zener Single 30V 5% 1W 2-Pin SMA T/R
Verical:
Zener Diode Single 30V 5% 15Ohm 1000mW 2-Pin SMA T/R
Win Source:
DIODE ZENER 30V 1W SMA
额定电压DC 30.0 V
容差 ±5 %
额定功率 1.00 W
针脚数 2
正向电压 1.2V @200mA
耗散功率 1 W
测试电流 25 mA
稳压值 30 V
正向电压Max 1.2V @200mA
额定功率Max 1 W
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SMA-2
长度 4.6 mm
宽度 2.92 mm
高度 2.09 mm
封装 SMA-2
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAZ30-13-F Diodes 美台 | 当前型号 | 当前型号 |
SMAZ30-13 美台 | 完全替代 | SMAZ30-13-F和SMAZ30-13的区别 |
