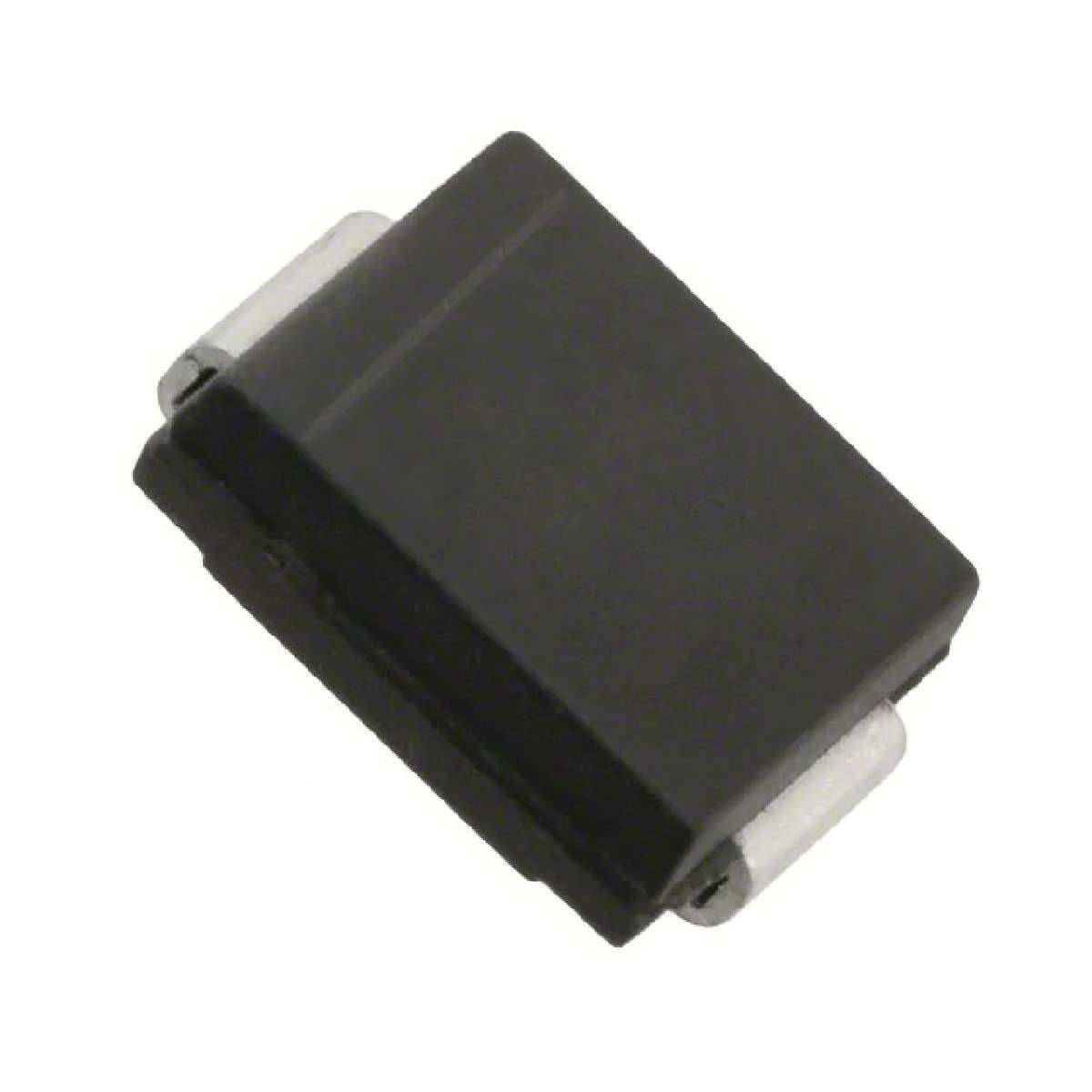

S3G 系列 3 A 400 V 快速恢复 整流器 表面贴装 - DO-214AB
标准 400 V 3A 表面贴装型 SMC
得捷:
DIODE GEN PURP 400V 3A SMC
立创商城:
400V 3A 1.15V@3A
贸泽:
Rectifiers 400V 3A
艾睿:
Converting from AC to DC is simple when using a switching diode S3G-13-F rectifier from Diodes Zetex. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its peak non-repetitive surge current is 100 A, while its maximum continuous forward current is 3 A. It is made in a single configuration. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C.
Allied Electronics:
Diode Switching 400V 3A 2Pin SMC
安富利:
Diode Switching 400V 3A 2-Pin SMC T/R
Chip1Stop:
Diode Switching 400V 3A 2-Pin SMC T/R
Verical:
Diode Switching 400V 3A Automotive 2-Pin SMC T/R
儒卓力:
**DIODE 3A 400V SMC **
Win Source:
DIODE GEN PURP 400V 3A SMC
额定电压DC 400 V
额定电流 3.00 A
电容 40.0 pF
输出电流 ≤3.00 A
正向电压 1.15 V
极性 Standard
热阻 10℃/W RθJL
正向电流 3 A
正向电压Max 1.15V @3A
正向电流Max 3 A
工作温度Max 150 ℃
工作温度Min 65 ℃
安装方式 Surface Mount
引脚数 2

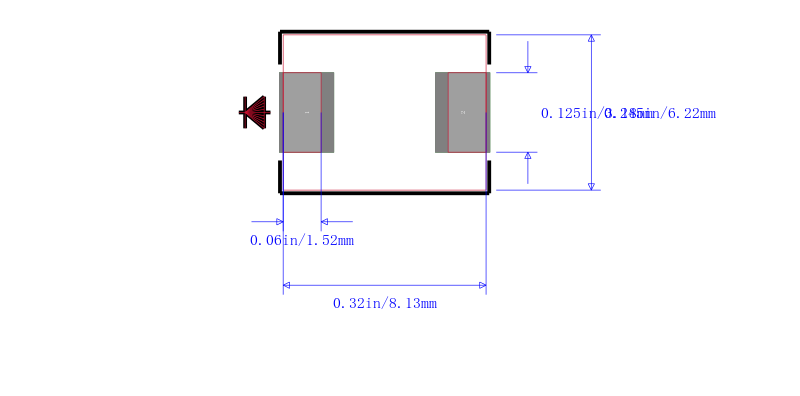

封装 SMC
长度 7.11 mm
宽度 6.22 mm
高度 2.42 mm
封装 SMC
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
S3G-13-F Diodes 美台 | 当前型号 | 当前型号 |
S3G-13 美台 | 类似代替 | S3G-13-F和S3G-13的区别 |
FS3G TRTB 法格 | 类似代替 | S3G-13-F和FS3G TRTB的区别 |
S3G-E3/57T 威世 | 功能相似 | S3G-13-F和S3G-E3/57T的区别 |
