SBR1U200P1 系列 1 A 200 V 表面贴装 超势垒整流器 - POWERDI-123
超级势垒 1A 表面贴装型 PowerDI™ 123
得捷:
DIODE SBR 200V 1A POWERDI123
立创商城:
200V 750mV@1A 50μA@200V
e络盟:
肖特基整流器, 200 V, 1 A, 单, PowerDI 123, 2 引脚, 820 mV
艾睿:
Converting from AC to DC is simple when using a super barrier rectifier SBR1U200P1-7 rectifier from Diodes Zetex. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a single configuration. Its peak non-repetitive surge current is 40 A, while its maximum continuous forward current is 1 A. This rectifier has an operating temperature range of -65 °C to 175 °C.
Allied Electronics:
1A 200V Super Barr. Rectifier PowerDI123
安富利:
Diode Super Barrier Rectifier 200V 1A 2-Pin PowerDI 123 T/R
Chip1Stop:
Diode Switching 200V 1A 2-Pin PowerDI 123 T/R
Verical:
Rectifier Diode Super Barrier Rectifier 200V 1A 25ns 2-Pin PowerDI 123 T/R
Newark:
# DIODES INC. SBR1U200P1-7 SCHOTTKY RECTIFIER, 1A, 150V, POWERDI123
儒卓力:
**SCHOTTKY-D. 1A 200V POWERDI123 **
Win Source:
DIODE SBR 200V 1A POWERDI123
针脚数 2
正向电压 820mV @1A
热阻 217℃/W RθJA
反向恢复时间 25 ns
正向电流 1 A
最大正向浪涌电流(Ifsm) 40 A
正向电压Max 820 mV
正向电流Max 1000 mA
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2

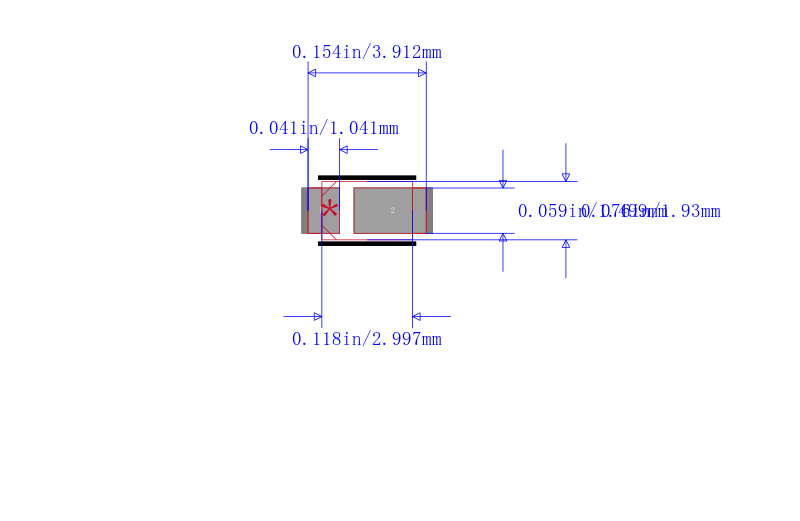

封装 POWERDIR-123
高度 0.98 mm
封装 POWERDIR-123
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
