SK35 系列 50 V 3 A 表面贴装 肖特基 势垒整流器 DO-214AB
Features
• Guard Ring Construction for Transient Protection
• High Current Capability and Low VF
• Capable of Meeting Environmental Standards of MIL-STD-19500
• Plastic Material - UL Flammability Classification 94V-0
得捷:
DIODE SCHOTTKY 50V 3A SMC
艾睿:
Converting from AC to DC is simple when using a Schottky diode SK35-7-F rectifier from Diodes Zetex. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a single configuration. Its peak non-repetitive surge current is 100 A, while its maximum continuous forward current is 3 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C.
安富利:
Diode Schottky 50V 3A 2-Pin SMC T/R
富昌:
SK35 系列 50 V 3 A 表面贴装 肖特基 势垒整流器 DO-214AB
Chip1Stop:
Diode Schottky 50V 3A 2-Pin SMC T/R
Verical:
Rectifier Diode Schottky 50V 3A 2-Pin SMC T/R
Win Source:
DIODE SCHOTTKY 50V 3A SMC
额定电压DC 50.0 V
额定电流 3.00 A
电容 300 pF
输出电流 ≤3.00 A
正向电压 0.75 V
极性 Standard
热阻 10℃/W RθJL
正向电流 3000 mA
最大正向浪涌电流(Ifsm) 100 A
正向电流Max 3 A
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2

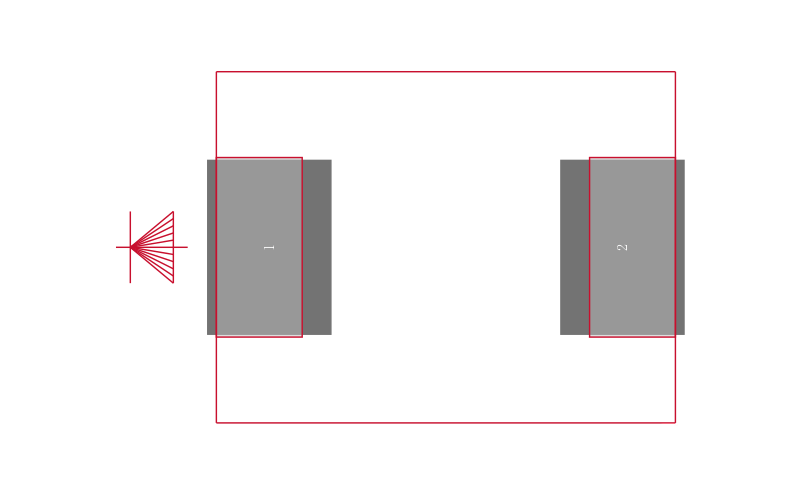

封装 SMC
长度 7.11 mm
宽度 6.22 mm
高度 2.19 mm
封装 SMC
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SK35-7-F Diodes 美台 | 当前型号 | 当前型号 |
B350A-13-F 美台 | 类似代替 | SK35-7-F和B350A-13-F的区别 |
B360-13-F 美台 | 类似代替 | SK35-7-F和B360-13-F的区别 |
B370-13-F 美台 | 类似代替 | SK35-7-F和B370-13-F的区别 |
