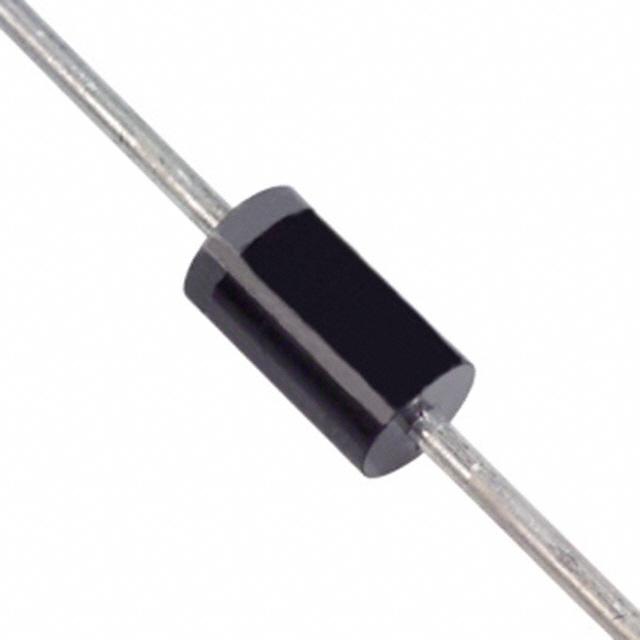

SBR12A45SD1-T 编带
超级势垒 45 V 12A 通孔 DO-201AD
立创商城:
45V 430mV@12A 50μA@45V
得捷:
DIODE SBR 45V 12A DO201AD
艾睿:
Converting from AC to DC is simple when using a super barrier rectifier SBR12A45SD1-T rectifier from Diodes Zetex. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It is made in a single configuration. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C. Its peak non-repetitive surge current is 200 A, while its maximum continuous forward current is 12 A.
安富利:
Diode Super Barrier Rectifier 45V 12A 2-Pin DO-201AD T/R
Chip1Stop:
Diode Super Barrier Rectifier 45V 12A Automotive 2-Pin DO-201AD T/R
Verical:
Rectifier Diode Super Barrier Rectifier 45V 12A 2-Pin DO-201AD T/R
儒卓力:
**SCHOTTKY-D. 12A 45V DO-201AD **
针脚数 2
正向电压 480mV @110A
热阻 31℃/W RθJA
正向电流 12000 mA
最大正向浪涌电流(Ifsm) 200 A
正向电压Max 480mV @110A
正向电流Max 12 A
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2
封装 DO-201AD
宽度 5.3 mm
封装 DO-201AD
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
