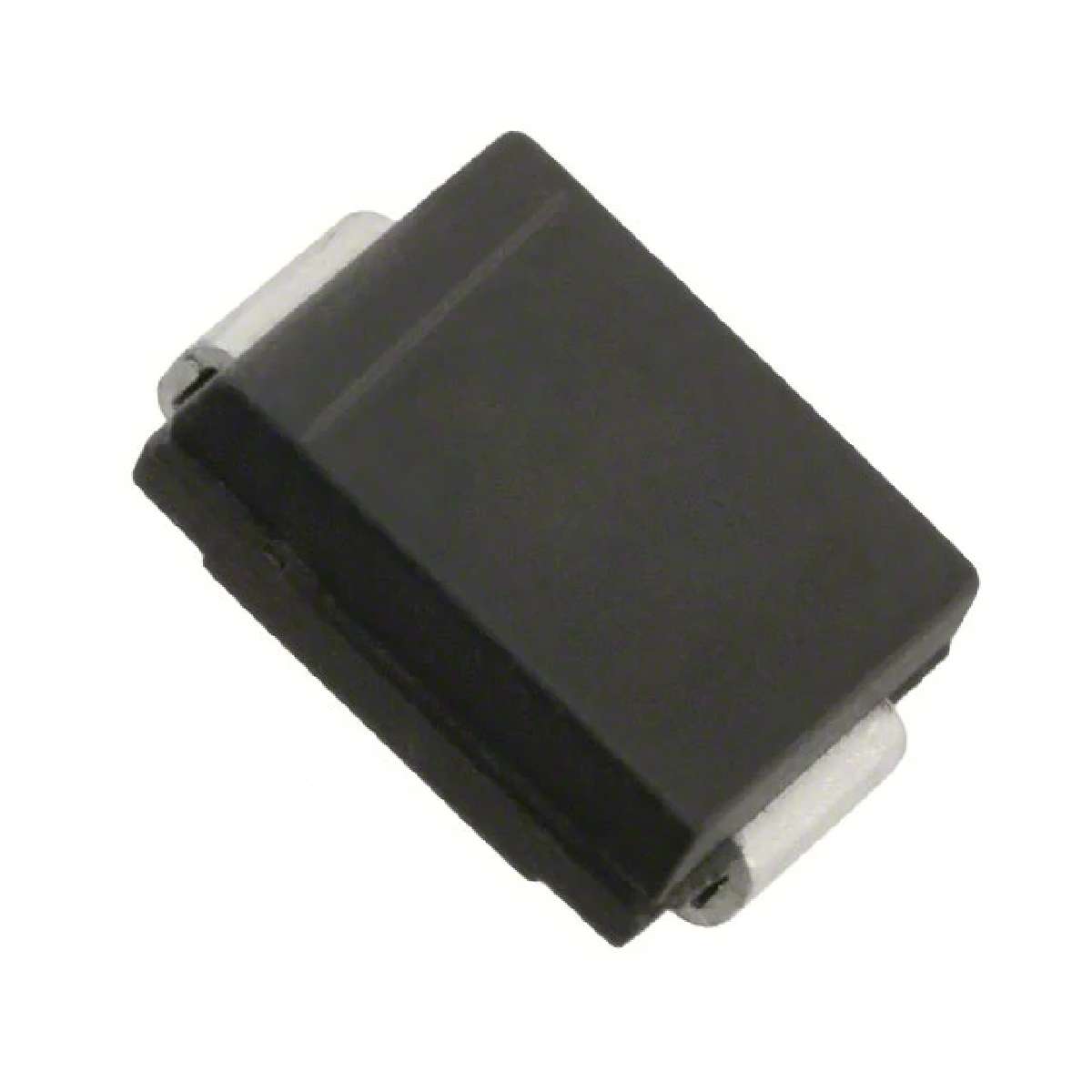

SK34 系列 40 V 3 A 表面贴装 肖特基势垒整流器 DO-214AB
肖特基 40 V 3A 表面贴装型 SMC
立创商城:
40V 3A 500mV@3A
得捷:
DIODE SCHOTTKY 40V 3A SMC
贸泽:
Schottky Diodes & Rectifiers 3.0A 40V
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode SK34-7-F rectifier from Diodes Zetex. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its peak non-repetitive surge current is 100 A, while its maximum continuous forward current is 3 A. It is made in a single configuration. This rectifier has an operating temperature range of -65 °C to 150 °C.
安富利:
Diode Schottky 40V 3A 2-Pin SMC T/R
富昌:
SK34 系列 40 V 3 A 表面贴装 肖特基势垒整流器 DO-214AB
Chip1Stop:
Diode Schottky 40V 3A 2-Pin SMC T/R
Verical:
Rectifier Diode Schottky 40V 3A 2-Pin SMC T/R
Win Source:
DIODE SCHOTTKY 40V 3A SMC
额定电压DC 40.0 V
额定电流 3.00 A
电容 300 pF
输出电流 ≤3.00 A
正向电压 0.5 V
极性 Standard
热阻 10℃/W RθJL
正向电流 3 A
最大正向浪涌电流(Ifsm) 100 A
正向电压Max 500mV @3A
正向电流Max 3 A
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SMC
长度 7.11 mm
宽度 6.22 mm
高度 2.19 mm
封装 SMC
工作温度 65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SK34-7-F Diodes 美台 | 当前型号 | 当前型号 |
B340-13-F 美台 | 类似代替 | SK34-7-F和B340-13-F的区别 |
SK34-7 美台 | 类似代替 | SK34-7-F和SK34-7的区别 |
MBRS340T3G 安森美 | 功能相似 | SK34-7-F和MBRS340T3G的区别 |
