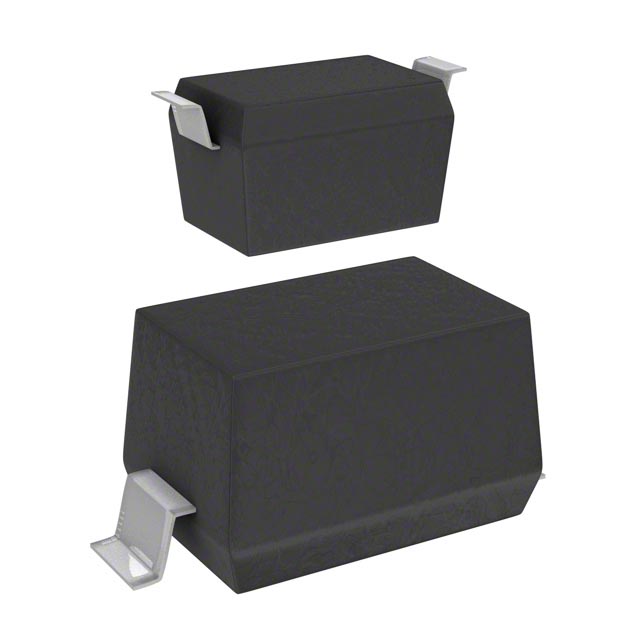

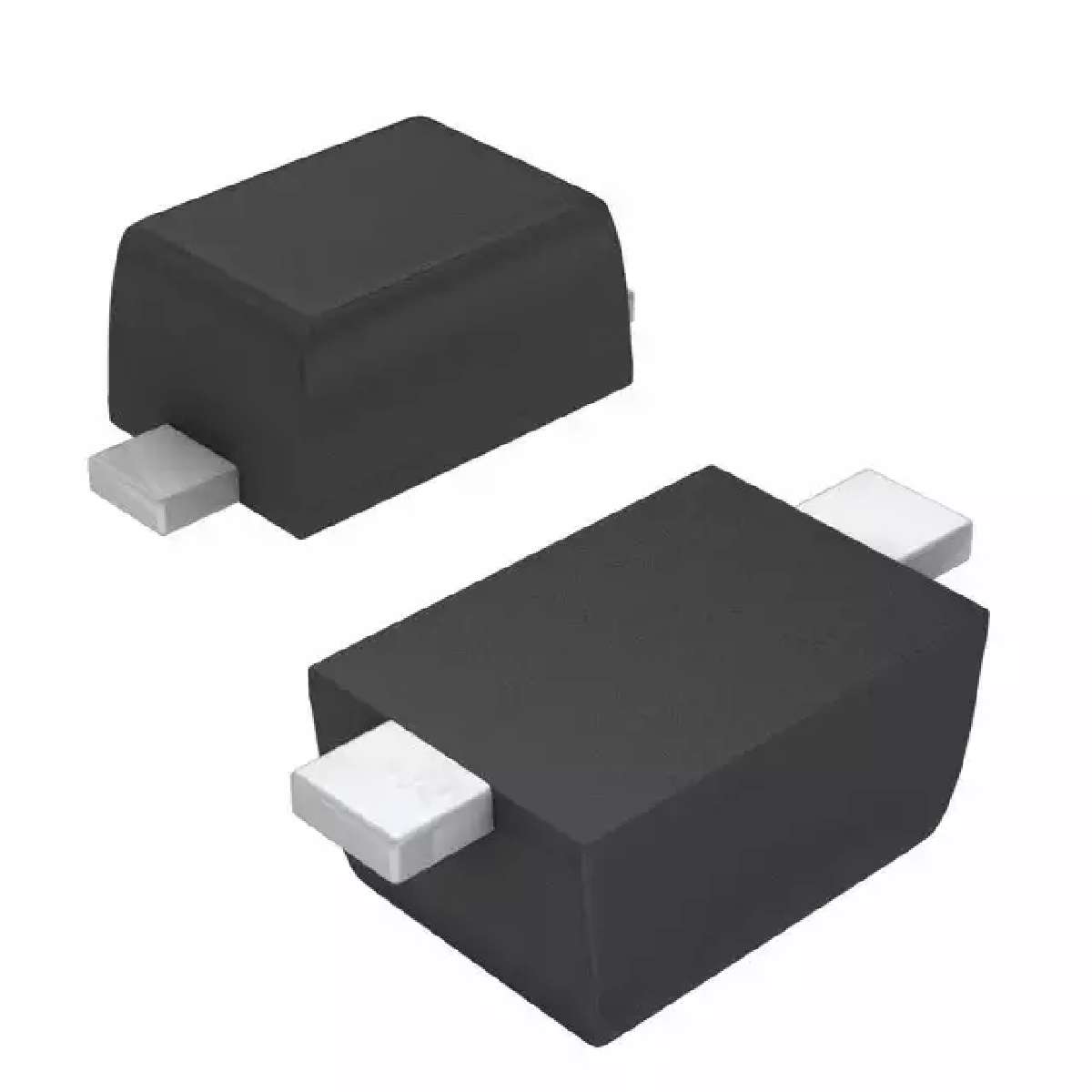

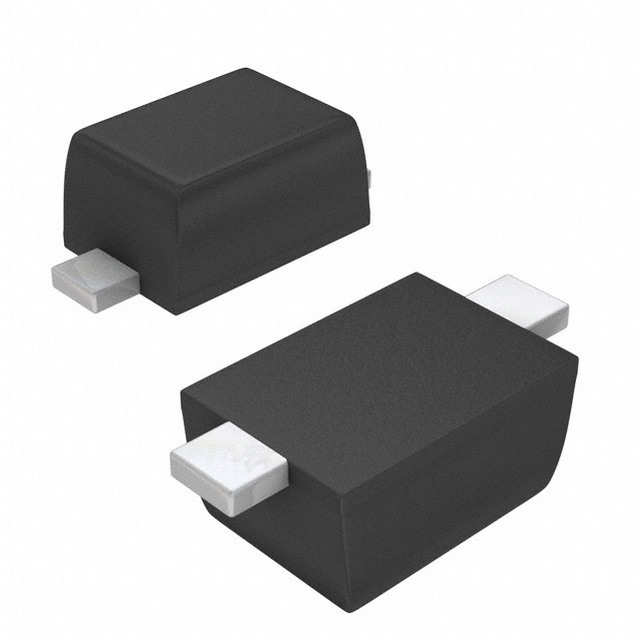

Diode Super Barrier Rectifier 30V 0.2A Automotive 2Pin SOD-523 T/R
超级势垒 30 V 200mA 表面贴装型 SOD-523
得捷:
DIODE SBR 30V 200MA SOD523
立创商城:
30V 570mV@200mA 200nA@30V
贸泽:
Schottky Diodes & Rectifiers 0.2A 30V
艾睿:
Switch from an AC voltage to a DC voltage using a super barrier rectifier SBR0230T5-7 rectifier from Diodes Zetex. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its peak non-repetitive surge current is 5 A, while its maximum continuous forward current is 0.2 A. It is made in a single configuration. This rectifier has an operating temperature range of -65 °C to 150 °C.
安富利:
Diode Super Barrier Rectifier 30V 0.2A 2-Pin SOD-523 T/R
Verical:
Rectifier Diode Super Barrier Rectifier 30V 0.2A 5ns 2-Pin SOD-523 T/R
Win Source:
DIODE SBR 30V 200MA SOD523
正向电压 0.61 V
热阻 400℃/W RθJA
反向恢复时间 5 ns
正向电流 0.2 A
最大正向浪涌电流（Ifsm） 5 A
正向电压Max 610mV @200mA
正向电流Max 200 mA
工作温度Max 150 ℃
工作温度Min 65 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-523-2
长度 1.3 mm
宽度 0.9 mm
高度 0.7 mm
封装 SOD-523-2
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
