SMBJ22A-13-F

集成电路

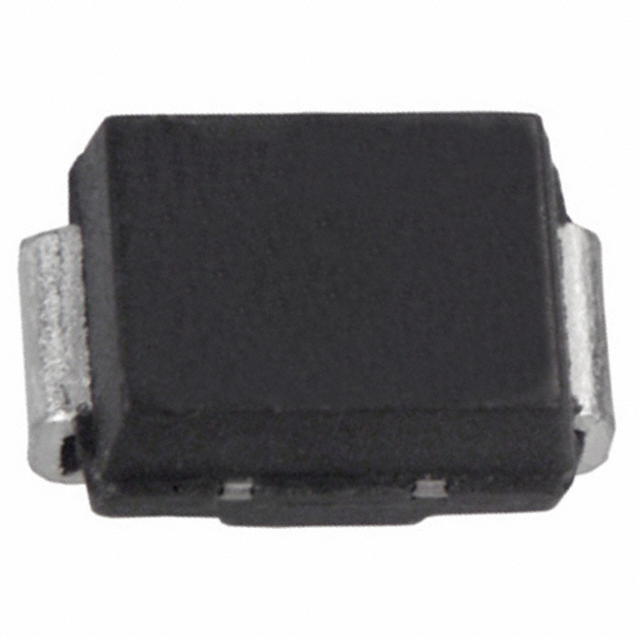

SMBJ Series 22 V 600 W SMT Uni-Directional Transient Voltage Suppressor - SMB

得捷:
TVS DIODE 22VWM 35.5VC SMB

立创商城:
单向 Vrwm:22V 600W

艾睿:
Do not risk expensive equipment and machinery from surges with this SMBJ22A-13-F TVS diode from Diodes Zetex. This device&s;s maximum clamping voltage is 35.5 V and minimum breakdown voltage is 24.4 V. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 150 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.

安富利:
Diode TVS Single Uni-Dir 22V 600W 2-Pin SMB T/R

Chip1Stop:
Diode TVS Single Uni-Dir 22V 600W 2-Pin SMB T/R

Verical:
Diode TVS Single Uni-Dir 22V 600W 2-Pin SMB T/R

Win Source:
TVS DIODE 22VWM 35.5VC SMB
