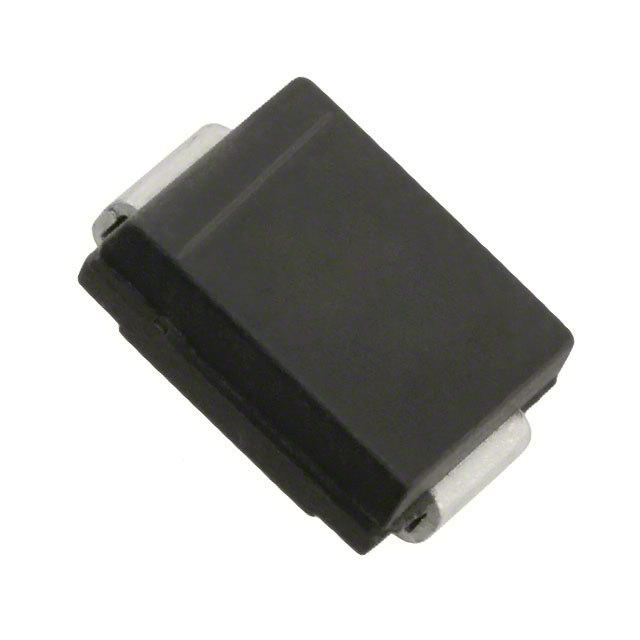

SMCJ 系列 1500 W 150 V 表面贴装 双向 TVS 二极管 - DO-214AB
Take the extra step in your circuitry by implementing surge protection with this TVS diode from Zetex. Its maximum leakage current is 5 μA. Its test current is 1 mA. Its peak pulse power dissipation is 1500 W. This device"s maximum clamping voltage is 243 V and minimum breakdown voltage is 167 V. This TVS diode has an operating temperature range of -55 °C to 150 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
额定电压DC 150 V
工作电压 150 V
额定功率 1.50 kW
击穿电压 167 V
电路数 1
耗散功率 1500 W
钳位电压 243 V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 167 V
击穿电压 167 V
工作温度Max 150 ℃
工作温度Min 55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

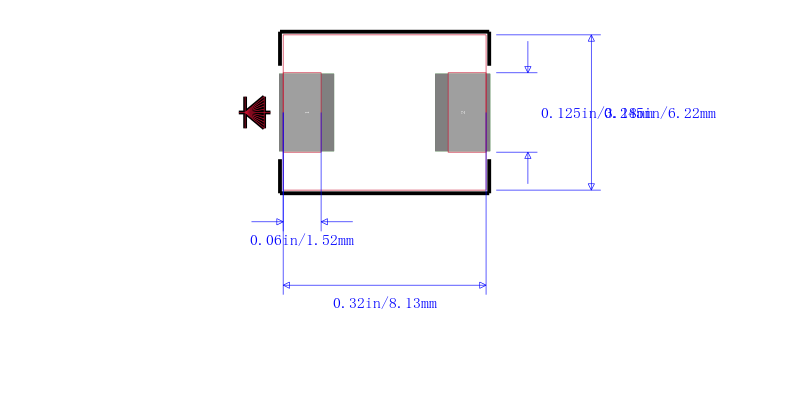

封装 SMC
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 SMC
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMCJ150CA-13-F Diodes 美台 | 当前型号 | 当前型号 |
SM15T150CA 意法半导体 | 功能相似 | SMCJ150CA-13-F和SM15T150CA的区别 |
SMCJ130CA 力特 | 功能相似 | SMCJ150CA-13-F和SMCJ130CA的区别 |
