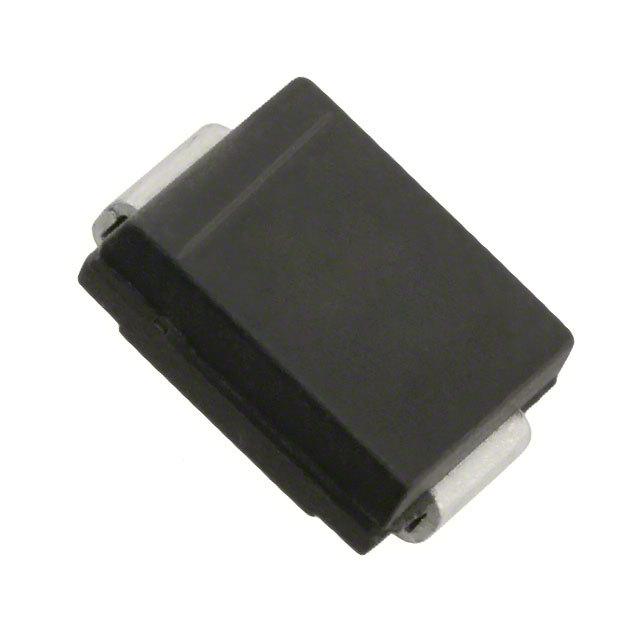

SMCJ51CA-13-F

SMCJ 系列 1500 W 51 V 表面贴装 双向 TVS 二极管 - DO-214AB

Features

1500W Peak Pulse Power Dissipation

5.0V - 170V Standoff Voltages

Glass Passivated Die Construction

Uni- and Bi-Directional Versions Available

Excellent Clamping Capability

Fast Response Time

立创商城:
双向 Vrwm:51V

得捷:
TVS DIODE 51VWM 82.4VC SMC

艾睿:
Do not risk expensive equipment and machinery from surges with this SMCJ51CA-13-F TVS diode from Diodes Zetex. Its peak pulse power dissipation is 1500 W. This device&s;s maximum clamping voltage is 82.4 V and minimum breakdown voltage is 56.7 V. Its test current is 1 mA. Its maximum leakage current is 5 μA. This TVS diode has an operating temperature range of -55 °C to 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.

安富利:
Diode TVS Single Bi-Dir 51V 1.5KW 2-Pin SMC T/R

Chip1Stop:
Diode TVS Single Bi-Dir 51V 1.5KW 2-Pin SMC T/R

Verical:
Diode TVS Single Bi-Dir 51V 1.5KW 2-Pin SMC T/R

儒卓力:
**TRANSIL BI 1,5KW 60V SMC **
