S8MC 系列 1000 V 8 A 表面贴装 玻璃钝化 整流器 - DO-214AB

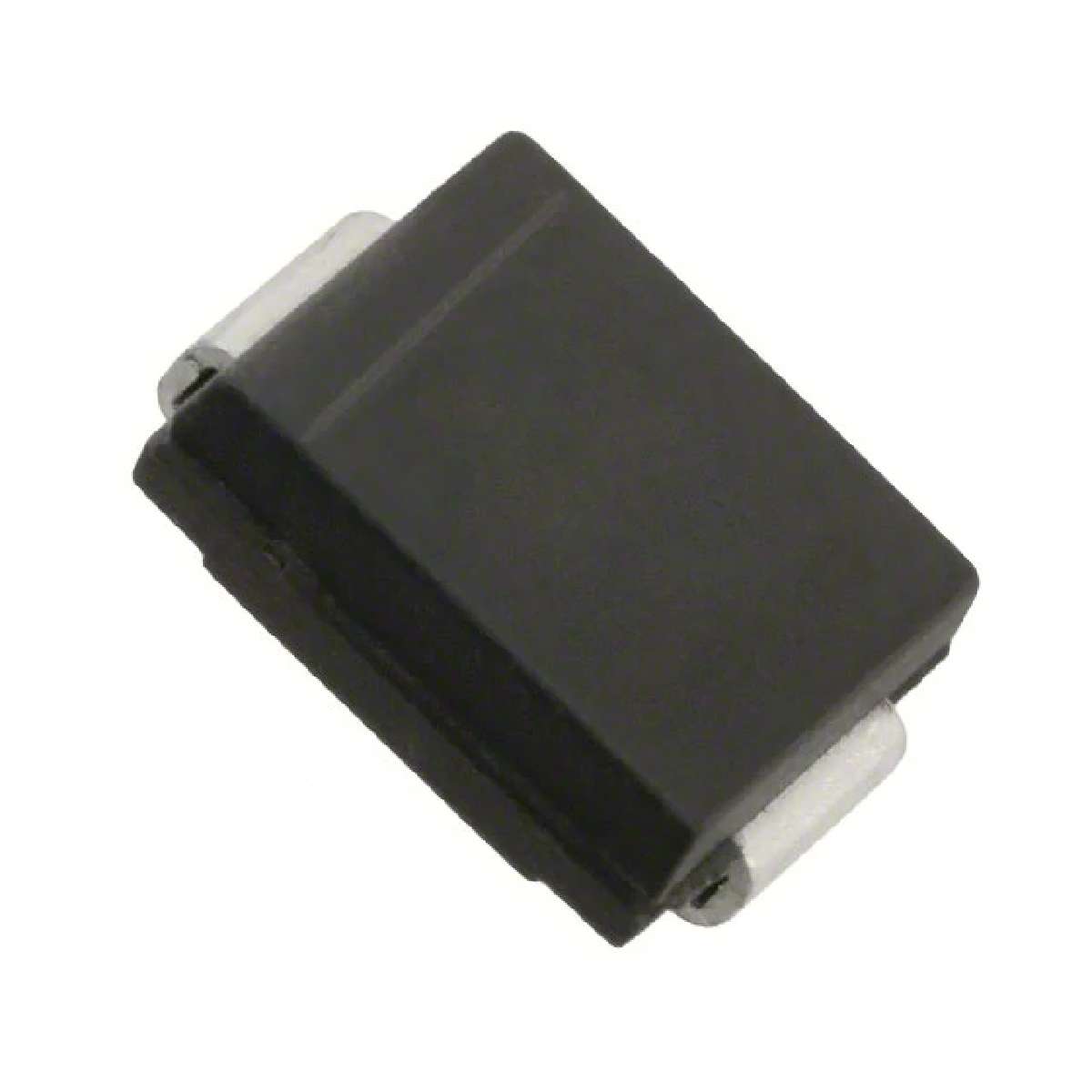

S8MC Series 1000 V 8 A Surface Mount Glass Passivated Rectifier - DO-214AB
得捷:
DIODE GEN PURP 1KV 8A SMC
立创商城:
1kV 8A 985mV@8A
贸泽:
整流器 8.0A 1000V
e络盟:
标准恢复二极管, 1 kV, 8 A, 单, 985 mV, 2.7 µs, 200 A
艾睿:
Unable to produce direct current from alternating current? Use this S8MC-13 rectifier from Diodes Zetex to convert AC to DC! This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It is made in a single configuration. Its peak non-repetitive surge current is 200 A, while its maximum continuous forward current is 8 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C.
Allied Electronics:
Diode 1KV 8A 2Pin SMC
安富利:
Diode 1KV 8A 2-Pin SMC T/R
Chip1Stop:
Diode 1KV 8A 2-Pin SMC T/R
Verical:
Rectifier Diode Switching 1KV 8A 2700ns 2-Pin SMC T/R
儒卓力:
**DIODE 8A 1000V SMC **
Win Source:
DIODE GEN PURP 1KV 8A SMC
针脚数 2
正向电压 985mV @8A
热阻 10℃/W RθJL
反向恢复时间 5 ns
正向电流 8 A
最大正向浪涌电流(Ifsm) 200 A
正向电压Max 985mV @8A
正向电流Max 8 A
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 SMC
长度 7.11 mm
宽度 6.22 mm
高度 2.3 mm
封装 SMC
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
