·低正向压降•保护环构建瞬态保护•两个共阴极的肖特基二极管
反向电压VrReverse Voltage| 40V \---|--- 平均整流电流IoAVerage Rectified Current| 30mA 最大正向压降VFForward VoltageVf | 370mV/0.37V 最大耗散功率PdPower dissipation| Description & Applications| ・Low Forward Voltage Drop • Guard Ring Construction for Transient Protection ·Two Common Cathode Schottky diode 描述与应用| ·低正向压降 •保护环构建瞬态保护 •两个共阴极的肖特基
得捷:

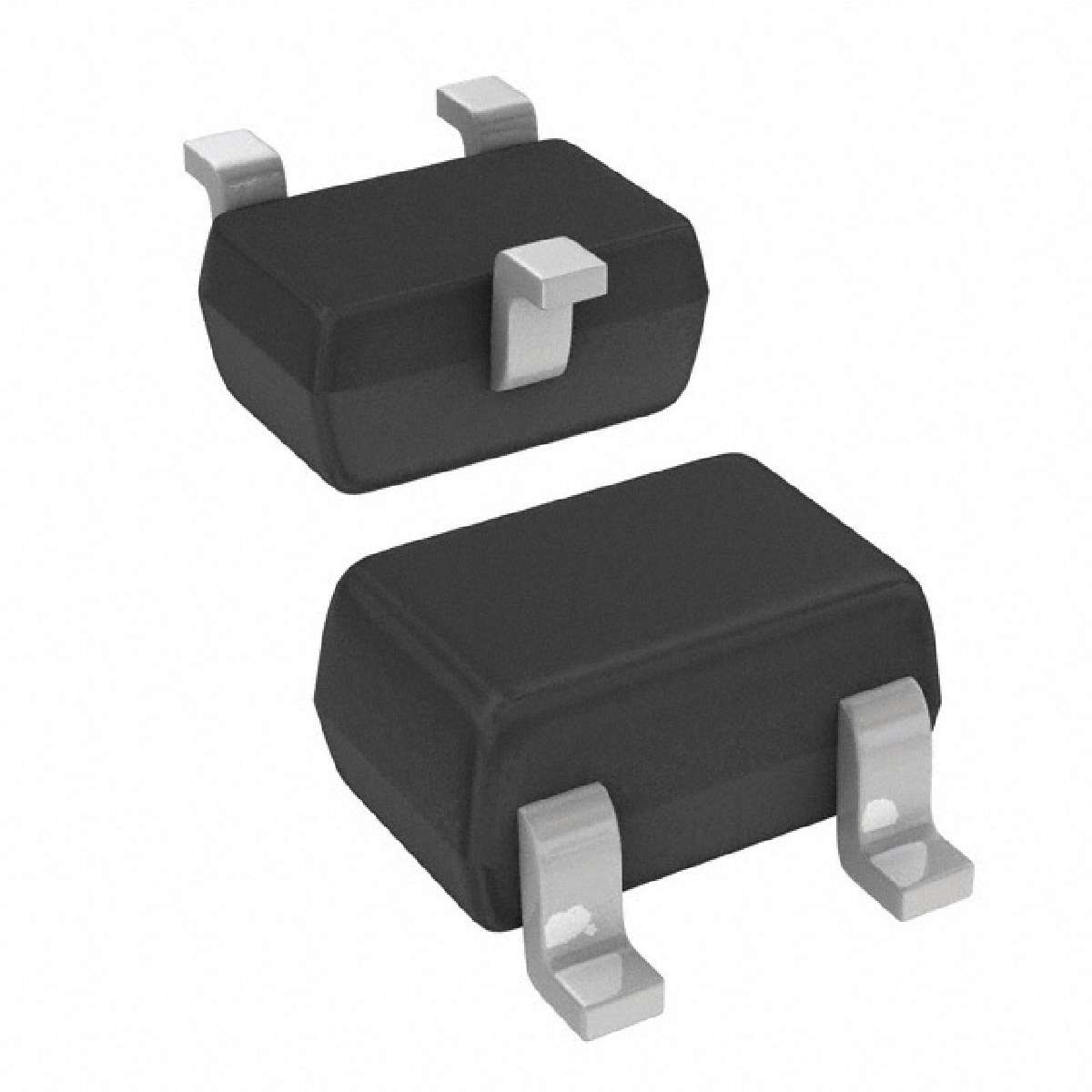

DIODE ARRAY SCHOTTKY 40V SOT323
贸泽:
肖特基二极管与整流器 40V 200mW
艾睿:
Diode Schottky 40V 0.03A Automotive 3-Pin SOT-323 T/R
Chip1Stop:
Diode Schottky 40V 0.03A 3-Pin SOT-323 T/R
Verical:
Rectifier Diode Schottky 40V 0.03A 3-Pin SOT-323 T/R
额定电压DC 40.0 V
额定电流 30.0 mA
电容 2.00 pF
额定功率 200 mW
正向电压 370mV @1mA
耗散功率 200 mW
正向电流 30 mA
正向电压Max 370mV @1mA
正向电流Max 30 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-323-3
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SOT-323-3
工作温度 -40℃ ~ 125℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDMG0340LC-7 Diodes 美台 | 当前型号 | 当前型号 |
SDMG0340LC-7-F 美台 | 完全替代 | SDMG0340LC-7和SDMG0340LC-7-F的区别 |
