SMBJ6.0A-13-F 编带
Take the extra step in your circuitry by implementing surge protection with this TVS diode from Zetex. This device"s maximum clamping voltage is 10.3 V and minimum breakdown voltage is 6.67 V. Its test current is 10 mA. Its peak pulse power dissipation is 600 W. Its maximum leakage current is 800 μA. This TVS diode has an operating temperature range of -55 °C to 150 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.
额定电压DC 6.00 V
工作电压 6 V
额定功率 600 W
击穿电压 7.67 V
电路数 1
耗散功率 600 W
钳位电压 10.3 V
测试电流 10 mA
脉冲峰值功率 600 W
最小反向击穿电压 6.67 V
击穿电压 6.67 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

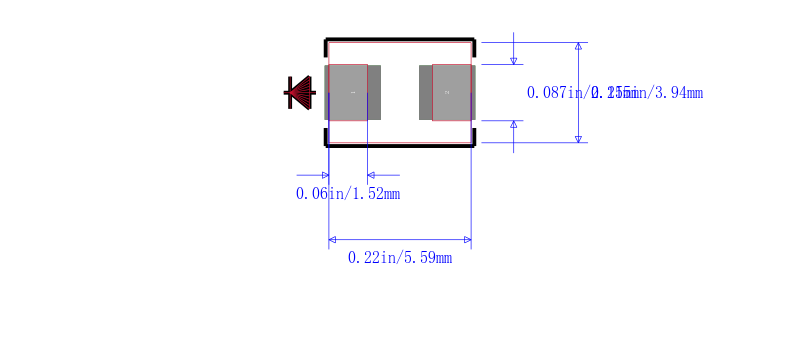

封装 DO-214AA-2
长度 4.57 mm
宽度 3.9 mm
高度 2.62 mm
封装 DO-214AA-2
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMBJ6.0A-13-F Diodes 美台 | 当前型号 | 当前型号 |
CD214B-T6.0ALF 伯恩斯 | 类似代替 | SMBJ6.0A-13-F和CD214B-T6.0ALF的区别 |
SMBJ6.0A-13 美台 | 类似代替 | SMBJ6.0A-13-F和SMBJ6.0A-13的区别 |
1SMB6.0AT3G 安森美 | 功能相似 | SMBJ6.0A-13-F和1SMB6.0AT3G的区别 |
