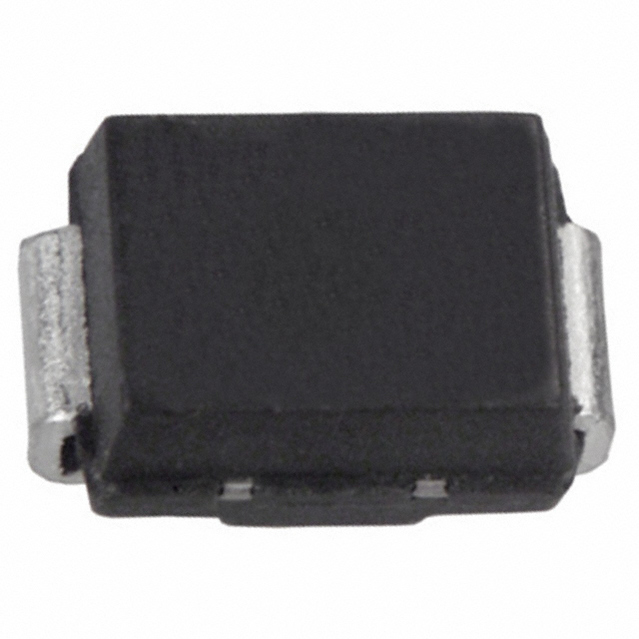

SMBJ26CA-13-F 编带
42.1V 夹子 14.2A Ipp TVS - 表面贴装型 SMB
得捷:
TVS DIODE 26VWM 42.1VC SMB
立创商城:
双向 Vrwm:26V
艾睿:
Save yourself hassle by equipping your device with Diodes Zetex&s;s SMBJ26CA-13-F TVS diode which will react to sudden or momentary overvoltage conditions. Its test current is 1 mA. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 42.1 V and minimum breakdown voltage is 28.9 V. Its peak pulse power dissipation is 600 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.
安富利:
Diode TVS Single Bi-Dir 26V 600W 2-Pin SMB T/R
Chip1Stop:
Diode TVS Single Bi-Dir 26V 600W 2-Pin SMB T/R
Verical:
Diode TVS Single Bi-Dir 26V 600W 2-Pin SMB T/R
儒卓力:
**TRANSIL BI 0,6KW 31V SMB **
Win Source:
TVS DIODE 26VWM 42.1VC SMB
额定电压DC 26.0 V
工作电压 26 V
额定功率 600 W
击穿电压 28.9 V
钳位电压 42.1 V
最大反向电压(Vrrm) 26V
测试电流 1 mA
脉冲峰值功率 600 W
最小反向击穿电压 28.9 V
击穿电压 28.9 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

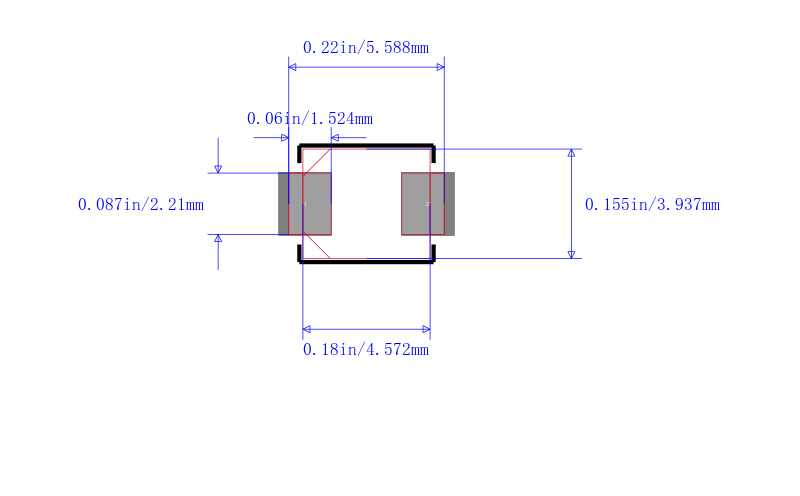

封装 SMB
长度 4.57 mm
宽度 3.9 mm
高度 2.62 mm
封装 SMB
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMBJ26CA-13-F Diodes 美台 | 当前型号 | 当前型号 |
SMBJ28CA-13-F 美台 | 类似代替 | SMBJ26CA-13-F和SMBJ28CA-13-F的区别 |
SMBJ26CA-E3/52 威世 | 类似代替 | SMBJ26CA-13-F和SMBJ26CA-E3/52的区别 |
SMBJ28CA-13 美台 | 类似代替 | SMBJ26CA-13-F和SMBJ28CA-13的区别 |
