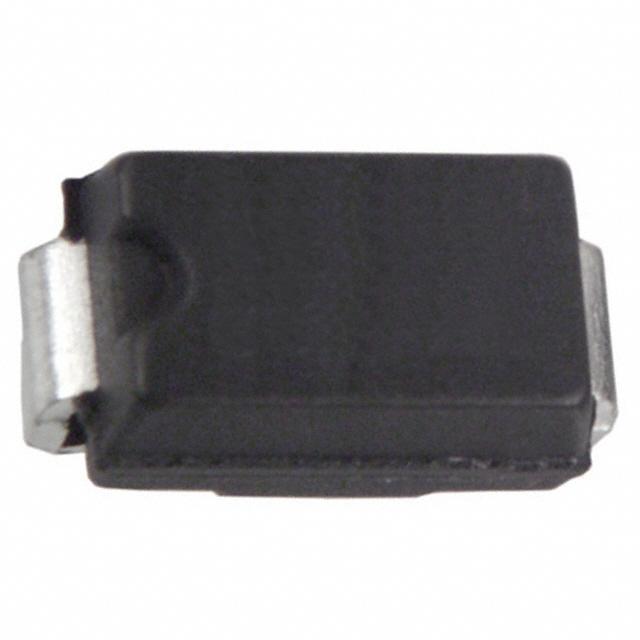

SMAJ48CA-13-F 编带
77.4V 夹子 5.2A Ipp TVS - 表面贴装型 SMA
得捷:
TVS DIODE 48VWM 77.4VC SMA
立创商城:
双向 Vrwm:48V
贸泽:
ESD 抑制器/TVS 二极管 400W 48V
艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this SMAJ48CA-13-F TVS diode from Diodes Zetex. Its test current is 1 mA. This device&s;s maximum clamping voltage is 77.4 V and minimum breakdown voltage is 53.3 V. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 400 W. This TVS diode has an operating temperature range of -55 °C to 150 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
Allied Electronics:
400W 48V Transient Voltage Suppr. SMA
安富利:
Diode TVS Single Bi-Dir 48V 400W 2-Pin SMA T/R
Chip1Stop:
Diode TVS Single Bi-Dir 48V 400W 2-Pin SMA T/R
Verical:
TVS Diode Single Bi-Dir 48V 400W 2-Pin SMA T/R
额定电压DC 48.0 V
工作电压 48 V
额定功率 400 W
击穿电压 53.3 V
电路数 1
耗散功率 400 W
钳位电压 77.4 V
最大反向电压(Vrrm) 48V
测试电流 1 mA
最大正向浪涌电流(Ifsm) 40 A
脉冲峰值功率 400 W
最小反向击穿电压 53.3 V
击穿电压 53.3 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC-2
长度 4.6 mm
宽度 2.92 mm
高度 2.2 mm
封装 DO-214AC-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ48CA-13-F Diodes 美台 | 当前型号 | 当前型号 |
SMAJ48CA-13 美台 | 完全替代 | SMAJ48CA-13-F和SMAJ48CA-13的区别 |
SMAJ48CA 伯恩斯 | 功能相似 | SMAJ48CA-13-F和SMAJ48CA的区别 |
SMAJ48CA-TP 美微科 | 功能相似 | SMAJ48CA-13-F和SMAJ48CA-TP的区别 |
