SMAJ10CA-13-F 编带

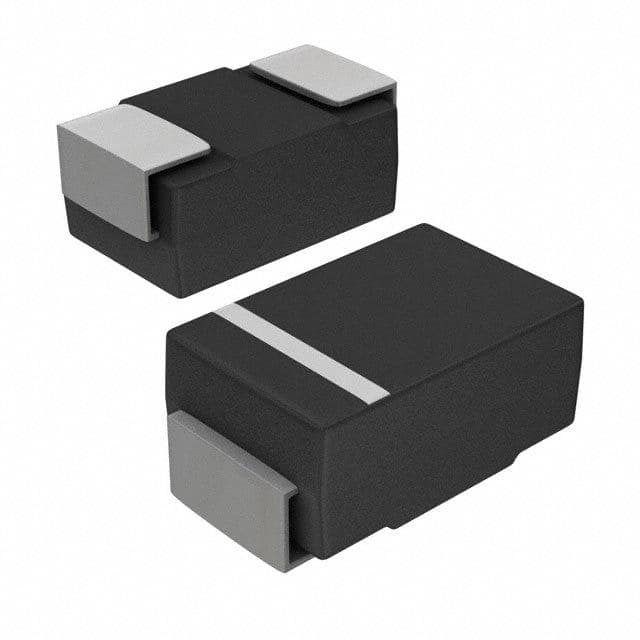

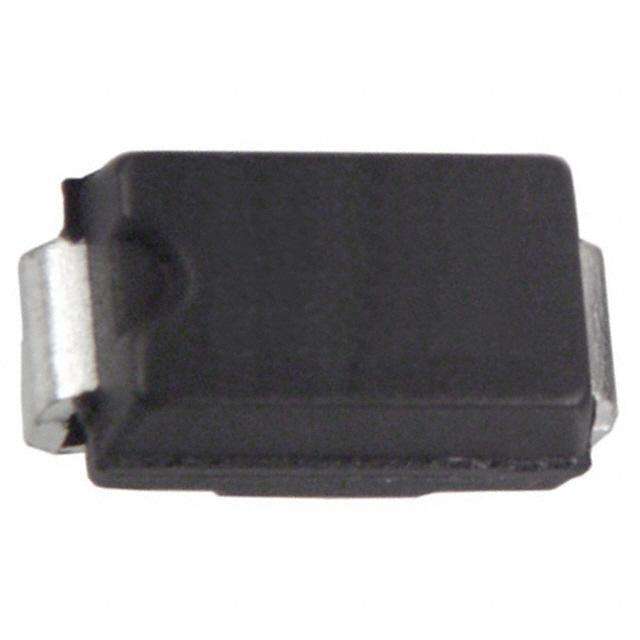

SMAJ Series 400 W 10 VBR Surface Mount Bi-Directional TVS Diode - DO-214AC
得捷:
TVS DIODE 10VWM 17VC SMA
立创商城:
双向 Vrwm:10V 400W
贸泽:
ESD 抑制器/TVS 二极管 400W 10V
艾睿:
Implement surge protection with this SMAJ10CA-13-F TVS diode from Diodes Zetex. Its maximum leakage current is 10 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 17 V and minimum breakdown voltage is 11.1 V. Its peak pulse power dissipation is 400 W. This TVS diode has an operating temperature range of -55 °C to 150 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.
Allied Electronics:
400W 10V Transient Voltage Suppr. SMA
安富利:
Diode TVS Single Bi-Dir 10V 400W 2-Pin SMA T/R
Chip1Stop:
Diode TVS Single Bi-Dir 10V 400W 2-Pin SMA T/R
Verical:
Diode TVS Single Bi-Dir 10V 400W 2-Pin SMA T/R
Win Source:
TVS DIODE 10VWM 17VC SMA
额定电压DC 10.0 V
工作电压 10 V
额定功率 400 W
击穿电压 11.1 V
耗散功率 400 W
钳位电压 17 V
测试电流 1 mA
脉冲峰值功率 400 W
最小反向击穿电压 11.1 V
击穿电压 11.1 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC-2
长度 4.60 mm
宽度 2.92 mm
高度 2.30 mm
封装 DO-214AC-2
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ10CA-13-F Diodes 美台 | 当前型号 | 当前型号 |
SMAJ10CA-E3/61 威世 | 类似代替 | SMAJ10CA-13-F和SMAJ10CA-E3/61的区别 |
SMAJ10CA-13 美台 | 类似代替 | SMAJ10CA-13-F和SMAJ10CA-13的区别 |
