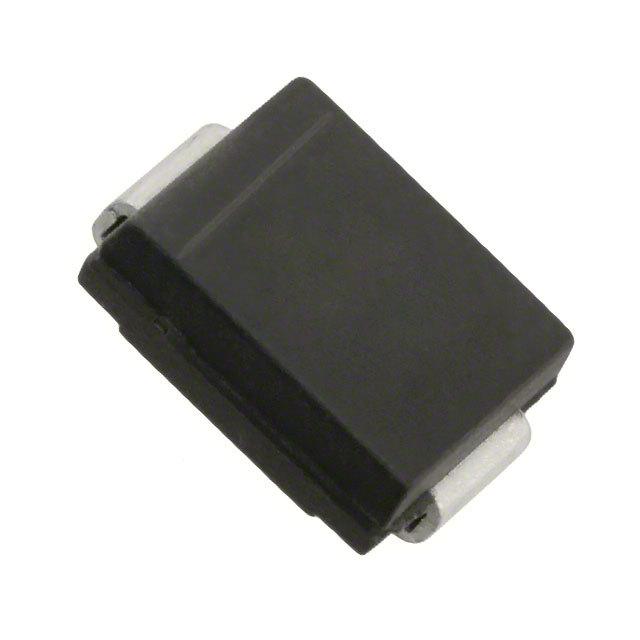

SMCJ14A-13-F

SMCJ 系列 130 V 1500 W 单向 瞬态电压抑制器

23.2V 夹子 64.7A Ipp TVS - 表面贴装型 SMC

得捷:
TVS DIODE 14VWM 23.2VC SMC

立创商城:
单向 Vrwm:14V 1.5kW

艾睿:
Protect your electronic equipment from sudden or momentary overvoltage conditions with this SMCJ14A-13-F TVS diode from Diodes Zetex. This device&s;s maximum clamping voltage is 23.2 V and minimum breakdown voltage is 15.6 V. Its test current is 1 mA. Its peak pulse power dissipation is 1500 W. Its maximum leakage current is 5 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.

安富利:
Diode TVS Single Uni-Dir 14V 1.5KW 2-Pin SMC T/R

Chip1Stop:
Diode TVS Single Uni-Dir 14V 1.5KW 2-Pin SMC T/R

Verical:
Diode TVS Single Uni-Dir 14V 1.5KW 2-Pin SMC T/R
