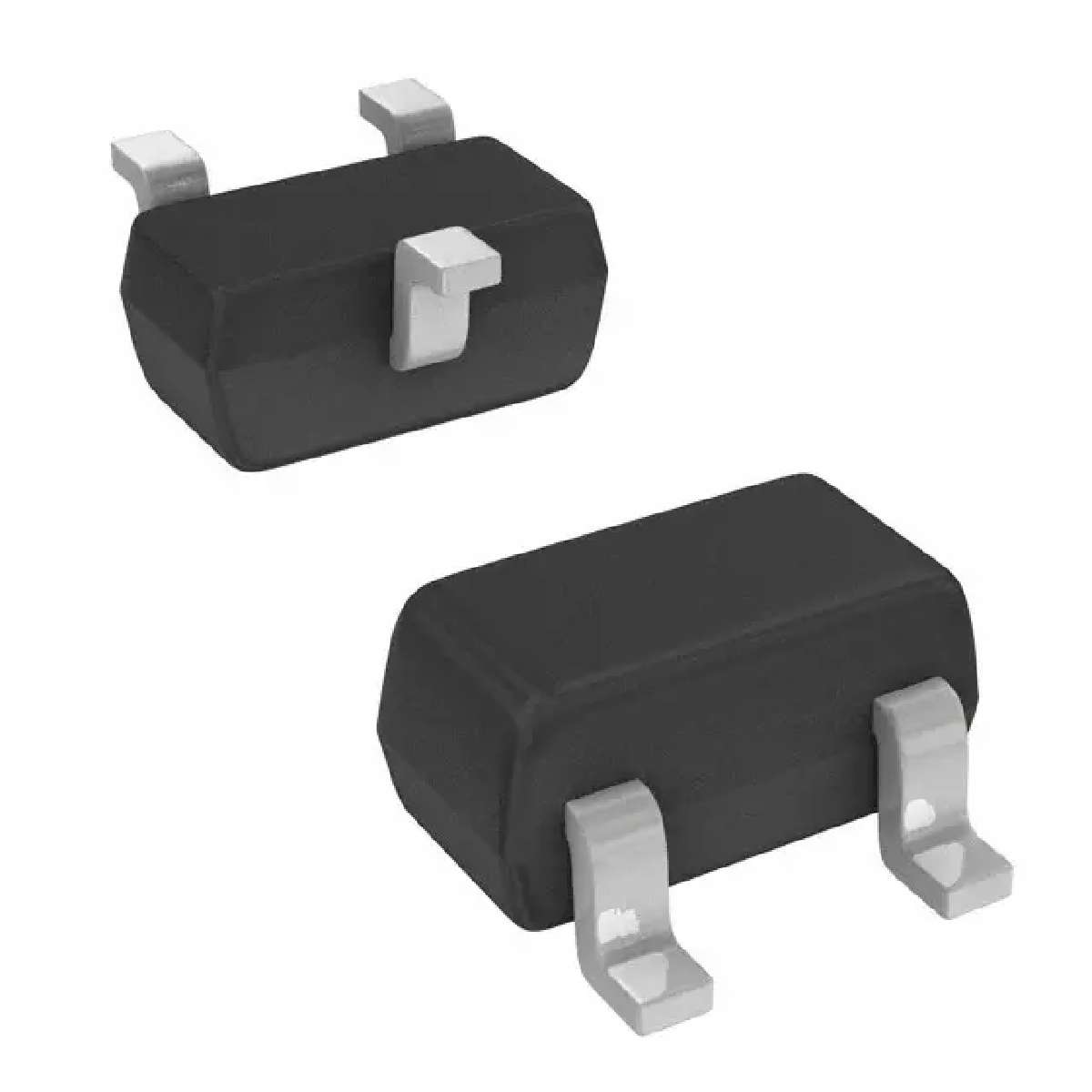

SDMP0340LT-7-F 二极管, 30mA 40V, 3针 SOT-523封装
DIODE SCHOTTKY 40V 30MA SOT523
得捷:
DIODE SCHOTTKY 40V 30MA SOT523
立创商城:
40V 30mA 370mV@1mA
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode SDMP0340LT-7-F rectifier from Diodes Zetex. Its maximum power dissipation is 150 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a single configuration. This rectifier has an operating temperature range of -40 °C to 125 °C. Its peak non-repetitive surge current is 0.2 A, while its maximum continuous forward current is 0.03 A.
安富利:
Diode Schottky 40V 0.03A 3-Pin SOT-523 T/R
Chip1Stop:
Diode Schottky 40V 0.03A 3-Pin SOT-523 T/R
Verical:
Diode Schottky 40V 0.03A Automotive 3-Pin SOT-523 T/R
Win Source:
DIODE SCHOTTKY 40V 30MA SOT523
额定电压DC 40.0 V
额定电流 30.0 mA
电容 2.00 pF
额定功率 150 mW
输出电流 ≤30.0 mA
正向电压 370mV @1mA
极性 Standard
耗散功率 150 mW
热阻 833℃/W RθJA
正向电流 30 mA
正向电压Max 370mV @1mA
正向电流Max 30 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-523
高度 0.75 mm
封装 SOT-523
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDMP0340LT-7-F Diodes 美台 | 当前型号 | 当前型号 |
SDMP0340LT-7 美台 | 类似代替 | SDMP0340LT-7-F和SDMP0340LT-7的区别 |
