·低正向压降•保护环构建瞬态保护•两个共阴极的肖特基二极管•两个独立的肖特基二极管连接
反向电压VrReverse Voltage| 40V \---|--- 平均整流电流IoAVerage Rectified Current| 30mA 最大正向压降VFForward VoltageVf | 370mV/0.37V 最大耗散功率PdPower dissipation| Description & Applications| ・Low Forward Voltage Drop • Guard Ring Construction for Transient Protection •Two independent Schottky diode connected 描述与应用| ·低正向压降 •保护环构建瞬态保护 •两个共阴极的肖特基 •两个独立的肖特基二极管连接
得捷:
DIODE ARRAY SCHOTTKY 40V SOT323
立创商城:
40V 30mA 370mV@1mA
贸泽:
Schottky Diodes & Rectifiers 40V 200mW
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode SDMG0340LS-7-F rectifier from Diodes Zetex. Its maximum power dissipation is 200 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a dual series configuration. Its peak non-repetitive surge current is 0.2 A, while its maximum continuous forward current is 0.03 A. This rectifier has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
Diode Schottky 40V 0.03A 3-Pin SOT-323 T/R
Chip1Stop:
Diode Schottky 40V 0.03A Automotive 3-Pin SOT-323 T/R
Verical:
Diode Schottky 40V 0.03A Automotive 3-Pin SOT-323 T/R
儒卓力:
**SCHOTTKY-DIODE 40V 0,03A SOT323 **
Win Source:
DIODE ARRAY SCHOTTKY 40V SOT323
额定电压DC 40.0 V
额定电流 30.0 mA
电容 2.00 pF
额定功率 160 mW
正向电压 370mV @1mA
耗散功率 200 mW
正向电流 0.03 A
最大正向浪涌电流(Ifsm) 0.2 A
正向电压Max 370mV @1mA
正向电流Max 30 mA
工作温度Max 125 ℃
工作温度Min 40 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3

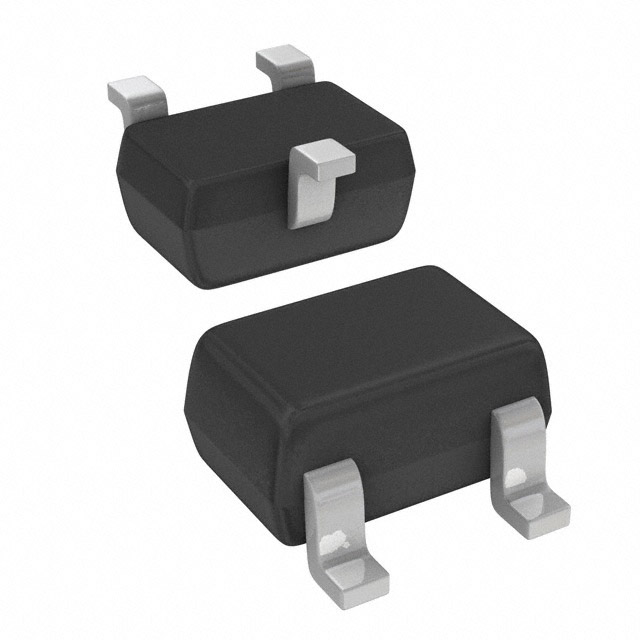

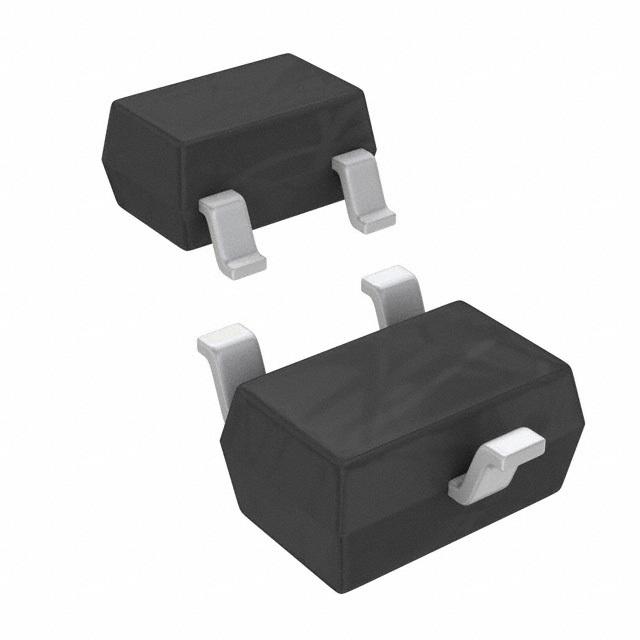

封装 SOT-323
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SOT-323
工作温度 40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDMG0340LS-7-F Diodes 美台 | 当前型号 | 当前型号 |
SDMG0340LS-7 美台 | 类似代替 | SDMG0340LS-7-F和SDMG0340LS-7的区别 |
BAT854SW,115 恩智浦 | 功能相似 | SDMG0340LS-7-F和BAT854SW,115的区别 |
