肖特基二极管与整流器 40V 150mW
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode rectifier from Zetex. Its maximum power dissipation is 150 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a dual common anode configuration. This rectifier has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its peak non-repetitive surge current is 0.2 A, while its maximum continuous forward current is 0.03 A.
额定电压DC 40.0 V
额定电流 30.0 mA
电容 2.00 pF
额定功率 150 mW
正向电压 370mV @1mA
耗散功率 150 mW
正向电流 30 mA
正向电压Max 370mV @1mA
正向电流Max 30 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 3

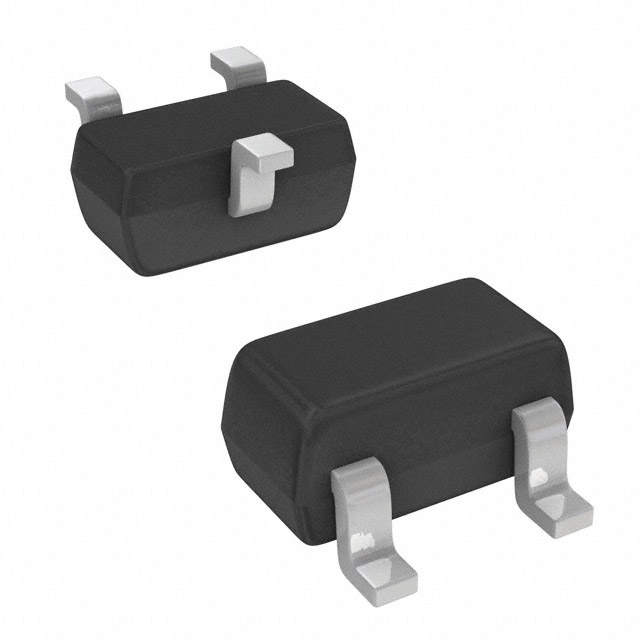

封装 SOT-523
长度 1.6 mm
宽度 0.8 mm
高度 0.75 mm
封装 SOT-523
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SDMP0340LAT-7-F Diodes 美台 | 当前型号 | 当前型号 |
SDMP0340LAT-7 美台 | 类似代替 | SDMP0340LAT-7-F和SDMP0340LAT-7的区别 |
