Diode Switching 800V 3A 2Pin SMC T/R

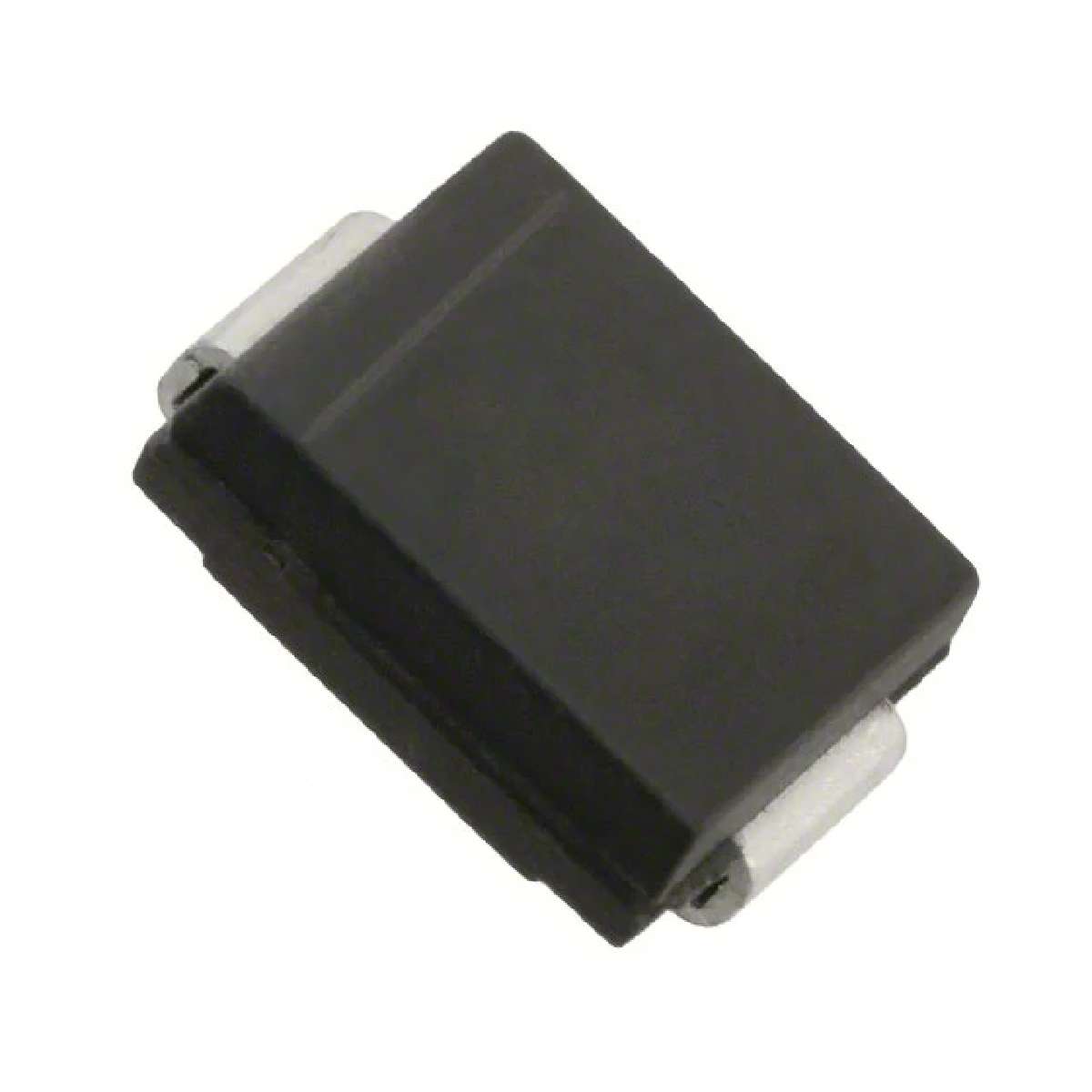

S3K Series 800 V 3 A Surface Mount Glass Passivated Rectifier - DO-214AB, SMC
得捷:
DIODE GEN PURP 800V 3A SMC
立创商城:
800V 3A 1.15V@3A
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode S3K-13-F rectifier from Diodes Zetex. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It is made in a single configuration. Its peak non-repetitive surge current is 100 A, while its maximum continuous forward current is 3 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C.
安富利:
Diode Switching 800V 3A 2-Pin SMC T/R
Chip1Stop:
Diode Switching 800V 3A 2-Pin SMC T/R
Verical:
Diode Switching 800V 3A Automotive 2-Pin SMC T/R
额定电压DC 800 V
额定电流 3.00 A
电容 40.0 pF
输出电流 ≤3.00 A
正向电压 1.15V @3A
极性 Standard
热阻 10℃/W RθJL
正向电流 3000 mA
正向电压Max 1.15V @3A
正向电流Max 3000 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2

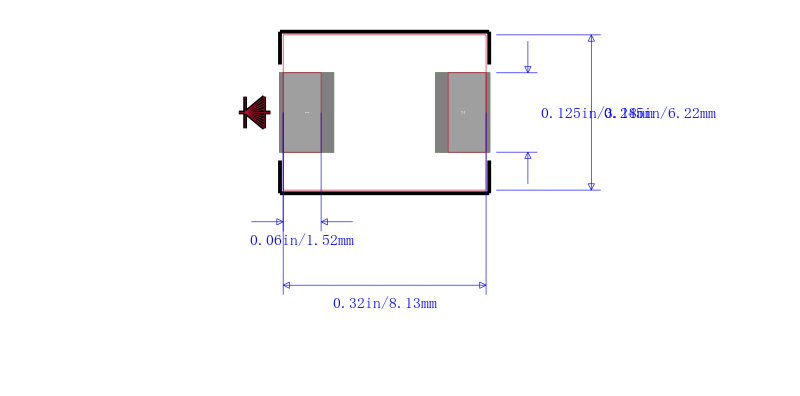

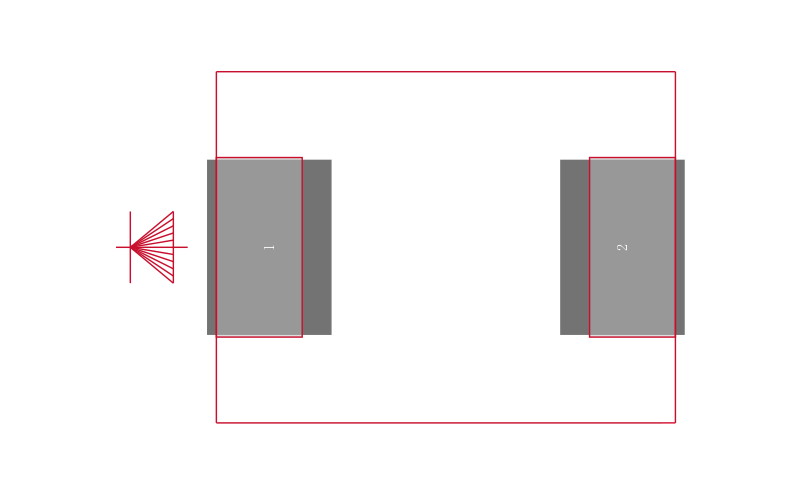

封装 SMC
长度 7.11 mm
宽度 6.22 mm
高度 2.42 mm
封装 SMC
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
S3K-13-F Diodes 美台 | 当前型号 | 当前型号 |
S3M-13-F 美台 | 类似代替 | S3K-13-F和S3M-13-F的区别 |
S3M-TP 美微科 | 功能相似 | S3K-13-F和S3M-TP的区别 |
S3K-TP 美微科 | 功能相似 | S3K-13-F和S3K-TP的区别 |
