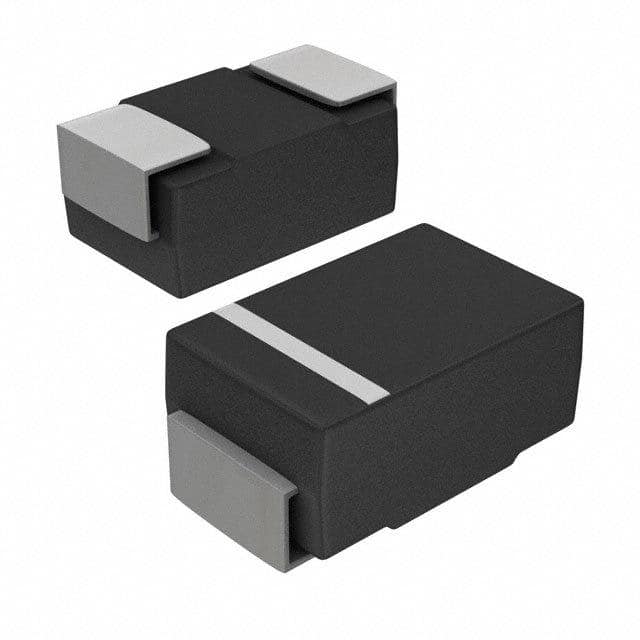

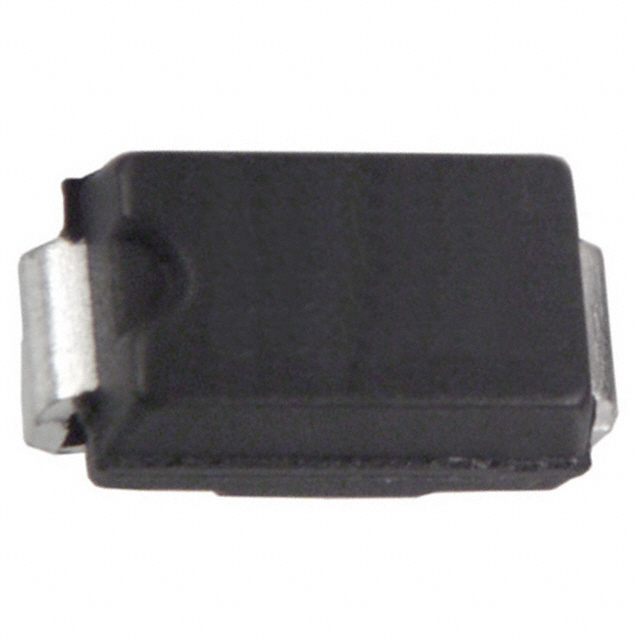

SMAJ85CA-13-F

SMAJ85CA-13-F 编带

400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Features

400W Peak Pulse Power Dissipation

Glass Passivated Die Construction

Uni- and Bi-Directional Versions Available

Excellent Clamping Capability

Fast Response Time

Lead Free Finish/RoHS Compliant Note 4

得捷:
TVS DIODE 85VWM 137VC SMA

立创商城:
双向 Vrwm:85V

贸泽:
ESD 抑制器/TVS 二极管 400W 85V

艾睿:
Prevent your circuits from experiencing malfunctions from electrostatic discharge with this SMAJ85CA-13-F TVS diode from Diodes Zetex. Its peak pulse power dissipation is 400 W. Its maximum leakage current is 5 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 137 V and minimum breakdown voltage is 94.4 V. This TVS diode has an operating temperature range of -55 °C to 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

安富利:
Diode TVS Single Bi-Dir 85V 400W 2-Pin SMA T/R

Chip1Stop:
Diode TVS Single Bi-Dir 85V 400W 2-Pin SMA T/R

Win Source:
TVS DIODE 85VWM 137VC SMA
