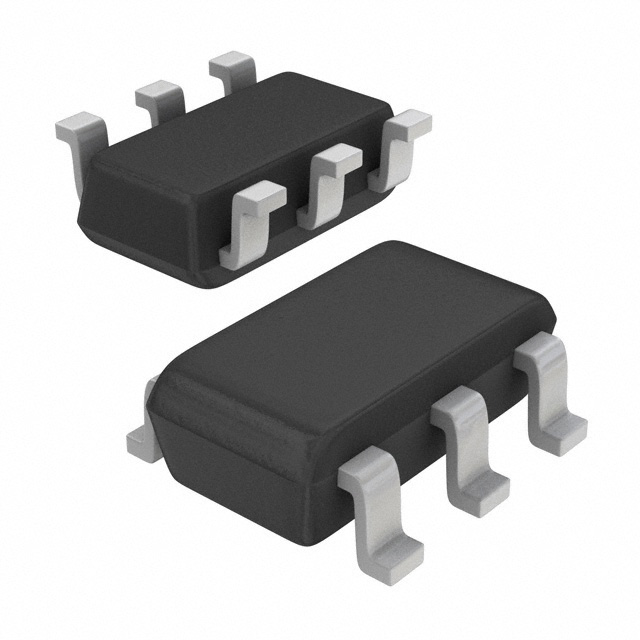

SDM03MT40 系列 40 V 30 mA 表面贴装 肖特基势垒二极管 - SOT-26
Diode Array 3 Independent Schottky 40V 30mA DC Surface Mount SOT-23-6
得捷:
DIODE ARRAY SCHOTTKY 40V SOT26
立创商城:
40V 30mA 370mV@1mA
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode SDM03MT40-7-F rectifier from Diodes Zetex. Its maximum power dissipation is 225 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It is made in a triple parallel configuration. Its peak non-repetitive surge current is 0.2 A, while its maximum continuous forward current is 0.03 A. This rectifier has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Chip1Stop:
Diode Schottky 40V 0.03A 6-Pin SOT-26 T/R
Verical:
Diode Schottky 40V 0.03A Automotive 6-Pin SOT-26 T/R
Win Source:
DIODE ARRAY SCHOTTKY 40V SOT26
额定电压DC 40.0 V
额定电流 30.0 mA
电容 2.00 pF
额定功率 225 mW
正向电压 370mV @1mA
耗散功率 225 mW
正向电流 30 mA
正向电压Max 370mV @1mA
正向电流Max 0.03 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 225 mW
安装方式 Surface Mount
引脚数 6
封装 SOT-23-6
高度 1.1 mm
封装 SOT-23-6
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDM03MT40-7-F Diodes 美台 | 当前型号 | 当前型号 |
SDM03MT40-7 美台 | 完全替代 | SDM03MT40-7-F和SDM03MT40-7的区别 |
SDM03MT40A-7-F 美台 | 类似代替 | SDM03MT40-7-F和SDM03MT40A-7-F的区别 |
