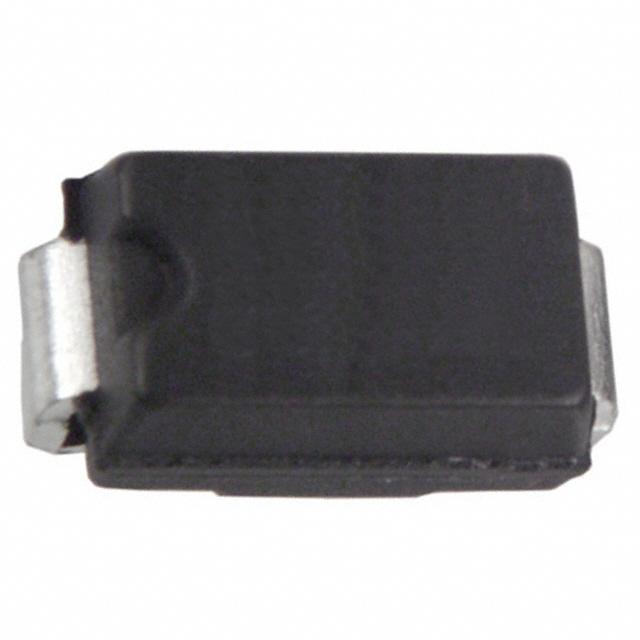

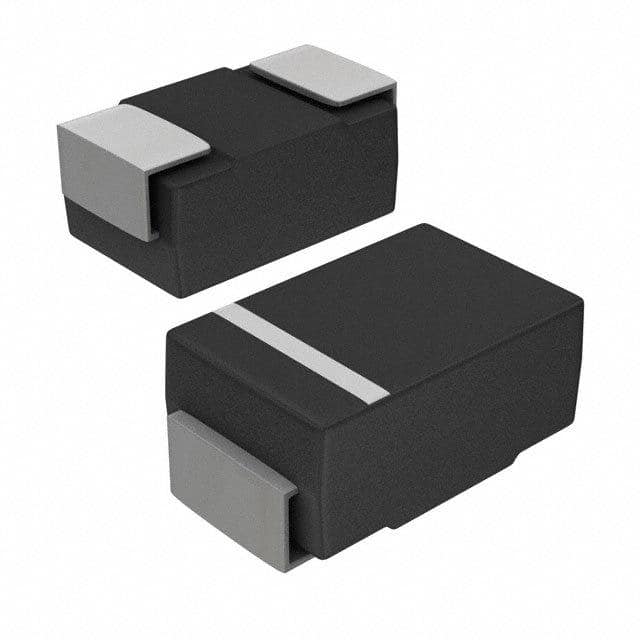

SMAJ64CA-13-F

SMAJ64CA-13-F 编带

103V 夹子 3.9A Ipp TVS - 表面贴装型 SMA

立创商城:
双向 Vrwm:64V 400W

得捷:
TVS DIODE 64VWM 103VC SMA

艾睿:
Do not risk expensive equipment and machinery from surges with this SMAJ64CA-13-F TVS diode from Diodes Zetex. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 103 V and minimum breakdown voltage is 71.1 V. Its test current is 1 mA. Its peak pulse power dissipation is 400 W. This TVS diode has an operating temperature range of -55 °C to 150 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.

安富利:
Diode TVS Single Bi-Dir 64V 400W 2-Pin SMA T/R

Chip1Stop:
Diode TVS Single Bi-Dir 64V 400W 2-Pin SMA T/R

Verical:
TVS Diode Single Bi-Dir 64V 400W 2-Pin SMA T/R

Win Source:
TVS DIODE 64VWM 103VC SMA
