TMS32C6713BGDPA200

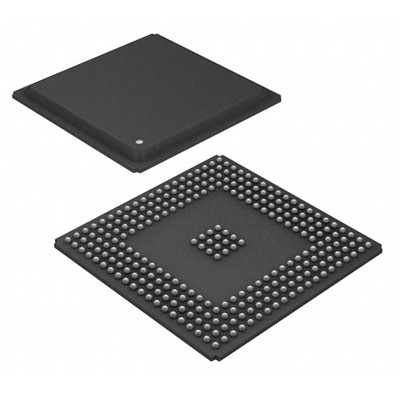

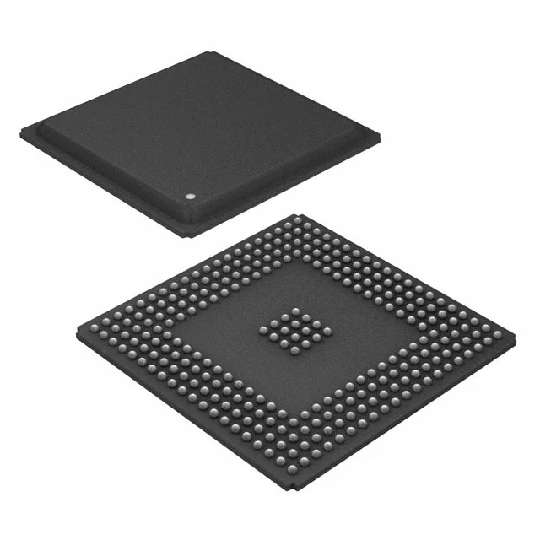

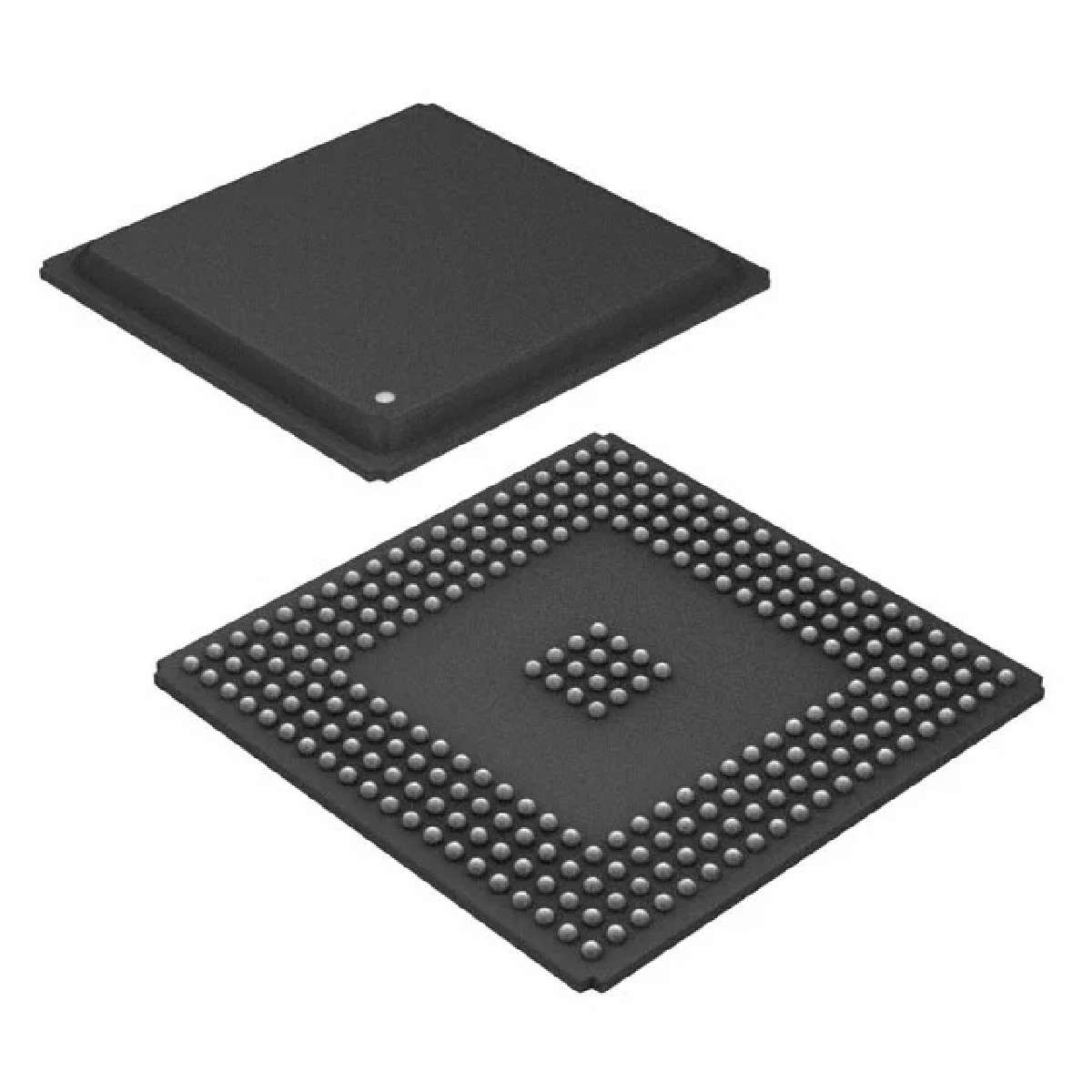

TEXAS INSTRUMENTS  TMS32C6713BGDPA200  芯片, 浮点数字信号处理器, 64位, 200MHZ, BGA-272

The is a floating-point Digital Signal Processor based on the high-performance, advanced very-long-instruction-word VLIW architecture developed by Texas Instruments , making this DSP an excellent choice for multichannel and multifunction applications. Operating at 225MHz, the C6713B delivers up to 1350 million floating-point operations per second MFLOPS, 1800 million instructions per second MIPS and with dual fixed-/floating-point multipliers up to 450 million multiply-accumulate operations per second MMACS. Operating at 300MHz, the C6713B delivers up to 1800 million floating-point operations per second MFLOPS, 2400 million instructions per second MIPS and with dual fixed-/floating-point multipliers up to 600 million multiply-accumulate operations per second MMACS. It uses a two-level cache-based architecture and has a powerful and diverse set of peripherals.

.

Eight 32-bit instructions/cycle

.

Rich peripheral set, optimized for audio

.

Load-store architecture with 32-bit general-purpose registers

.

32-bit External memory interface EMIF

.

Enhanced direct-memory-access EDMA controller

.

Eight serial data pins per port: individually assignable to any of the clock zones

.

Programmable clock generator

.

Programmable frame sync generator

.

Wide variety of I²S and similar bit stream formats

.

Integrated digital audio interface transmitter DIT supports

.

Dedicated GPIO module with 16 pins

.

Flexible phase-locked-loop PLL based clock generator module

.

Green product and no Sb/Br
