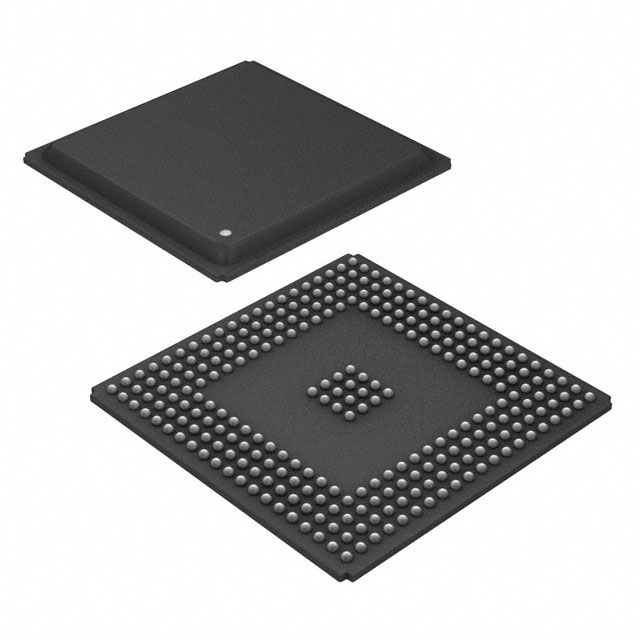

TMS320C6713BZDP300

TEXAS INSTRUMENTS  TMS320C6713BZDP300  芯片, 数字信号处理器, 浮点, C6713B, 300MHZ, 272BGA

The is a floating-point Digital Signal Processor based on the high-performance, advanced very-long-instruction-word VLIW architecture developed by Texas Instruments , making this DSP an excellent choice for multichannel and multifunction applications. Operating at 225MHz, the C6713B delivers up to 1350 million floating-point operations per second MFLOPS, 1800 million instructions per second MIPS and with dual fixed-/floating-point multipliers up to 450 million multiply-accumulate operations per second MMACS. Operating at 300MHz, the C6713B delivers up to 1800 million floating-point operations per second MFLOPS, 2400 million instructions per second MIPS and with dual fixed-/floating-point multipliers up to 600 million multiply-accumulate operations per second MMACS. It uses a two-level cache-based architecture and has a powerful and diverse set of peripherals.

.

Two 32-bit general-purpose timers

.

Dedicated GPIO module with 16 pins external interrupt capable

.

Flexible phase-locked-loop PLL based clock generator module

.

Two inter-integrated circuit bus I²C Bus™ multi-master and slave interfaces

.

Wide variety of I²S and similar bit stream formats

.

Integrated digital audio interface transmitter DIT supports

.

Programmable clock generator

.

Programmable frame sync generator

.

TDM Streams from 2-32 time slots

.

Eight serial data pins per port: individually assignable to any of the clock zones

.

Enhanced direct-memory-access EDMA controller

.

Single- and double-precision

.

Glueless interface to SRAM, EPROM, flash, SBSRAM and SDRAM
