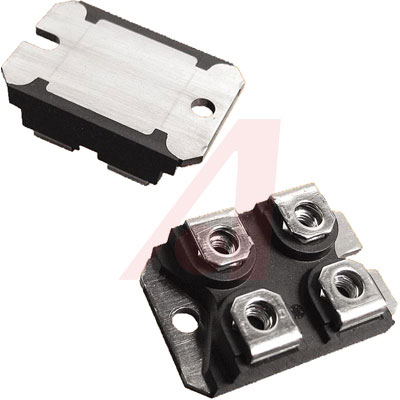

OHMITE TGHGCR0005FE Through Hole Current Sense Resistor, 0.0005Ω, SOT-227, 100W, ± 1%, TGHG Series, Thick Film
The TGHG Series uses state of the art technology to provide high reliable, non-inductive performance. This resistor is ideal for many current monitoring and controls applications.- .
- *Features**
* Resistance Values Beginning at 0.5 Milliohms
* Non-Inductive
* Four Terminal Kelvin Connection
* SOT-227 Package
* Four Terminals to Isolate Measurement Path from Current Flow Path
* Accuracy in a High Power Package **Specifications**
* Heat Sink: Nickel-Plated Copper
* Terminal Nuts: Metric M4 303 Stainless Steel
* Resistance Tolerances: 1%
* Pulse Current: Up to 500 A/0.5 Sec, Depending on Ohmic Value
* Temperature Coefficient: Referenced to 25°C, R Taken at –15°C and +105°C, 60 ppm/°C; 500 ppm/°C for Resistance Range 27 Milliohms to 49 Milliohms
* Power Rating: 100 W at 70°C Case Temperature; 50 Amp Permanent Higher on Request
* Dielectric Strength: 1000 VDC, Higher Value on Request
* Heat Resistance: Rth < 0.56 K/W
* Working Temperature Range: –55°C to +155°C
