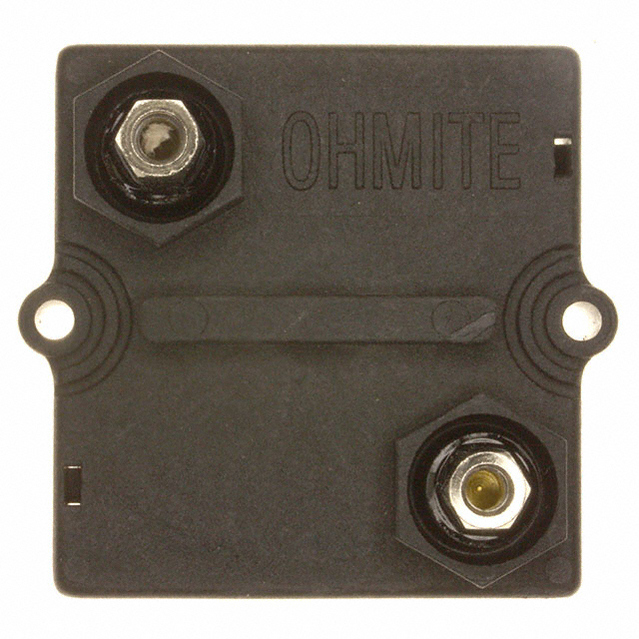

TAP800K10KE

平面电阻器 - 底架安装 800W 10K ohm 10% High Power

**Electrical Specifications. Resistance Tolerance:** ±10 Std. **Max. Operating Voltage:** 5000 VDC; higher voltage on request, not exceeding max. power. **Power Rating:** 800 W at 85°C bottom case temperature. **Temperature Coefficient:** ±150 ppm/°C others upon request. **Operating Temperature Range:** –55°C to 150°C. **Electric Strength Voltage:** 6,000 VRMS, 50 Hz up to 12,000 VRMS on special request. **Insulation Resistance:** 10 GΩ min. and 500 V. **Air Distance:** 14 mm min. **Inductance:** ≤80 nH.

**Features:**

* Electric Support is High Alumina Content Ceramic Metallized on the Bottom for Ideal Heat Transfer and Optimum Discharge

* Encapsulated with a Special Resin Filled Epoxy Casing with a Large Creepage Distance to Mass, Large Air Distance Between Terminals and a High Insulation Resistance CTI 600

* Resistance Element is Specially Designed for Low Inductance and Capacitance. The Element Provides Stable Performance in Addition to High Wattage and Pulse Loading Capability

* Contacts Allow for Easy Load Connecting with M4 or M5 Screws Not Included

* Materials Meet the Requirements of UL94-VO
