TMS320C6748BZWTA3

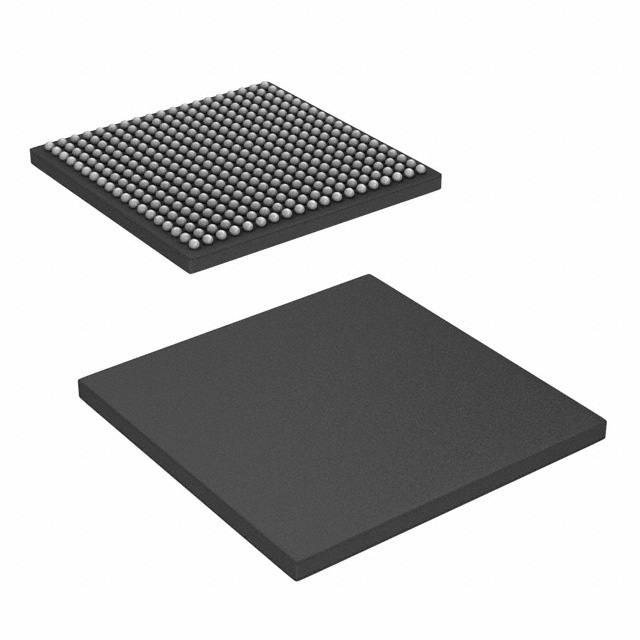

TEXAS INSTRUMENTS  TMS320C6748BZWTA3  芯片, 数字信号处理器, 定点/浮点, 361NFBGA

The is a Fixed/Floating Point Digital Signal Processor, low-power applications processor based on a C674x DSP core. This DSP provides significantly lower power than other members of the TMS320C6000™ platform of DSPs. The device enables original-equipment manufacturers OEMs and original-design manufacturers ODMs to quickly bring to market devices with robust operating systems, rich user interfaces and high processor performance through the maximum flexibility of a fully integrated, mixed processor solution. The device DSP core uses a 2-level cache-based architecture. The level 1 program cache L1P is a 32kB direct mapped cache and the level 1 data cache L1D is a 32kB 2-way, set-associative cache. The level 2 program cache L2P consists of a 256kB memory space that is shared between program and data space. L2 memory can be configured as mapped memory, cache or combinations of the two.

.

375 and 456MHz C674x fixed- and floating-point VLIW DSP

.

Enhanced Direct Memory Access Controller 3 EDMA3

.

Load-store architecture with nonaligned support

.

64 General-purpose registers 32-bit

.

Six ALU 32- and 40-bit functional units

.

Supports DSPBIOS and chip support library and DSP library

.

128kB RAM shared memory

.

LCD controller

.

Two serial peripheral interfaces SPIs each with multiple chip selects

.

Two multimedia card MMC/secure digital SD card interfaces with secure data I/O SDIO interfaces

.

Two master and slave inter-integrated circuits I²C bus

.

One host-port interface HPI with 16-bit wide muxed address and data bus for high bandwidth

.

Programmable real-time unit subsystem PRUSS

.

Standard power-management mechanism

.

USB 1.1 OHCI host with integrated PHY USB1

.

USB 2.0 OTG port with integrated PHY USB0

.

Real-time clock RTC with 32kHz oscillator and separate power rail

.

Three 64-bit general-purpose timers each configurable as two 32-bit timers

.

One 64-bit general-purpose or watchdog timer configurable as two 32-bit general-purpose timers

.

Two enhanced high-resolution pulse width modulators eHRPWMs
