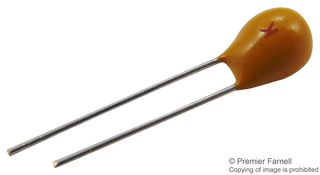

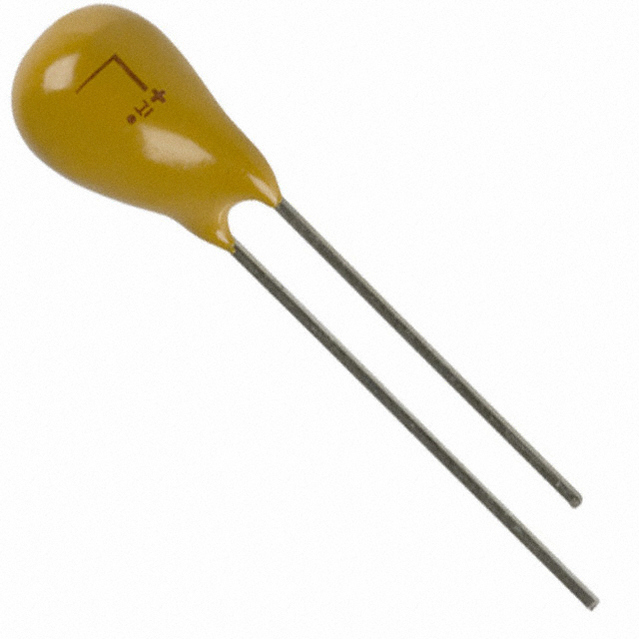

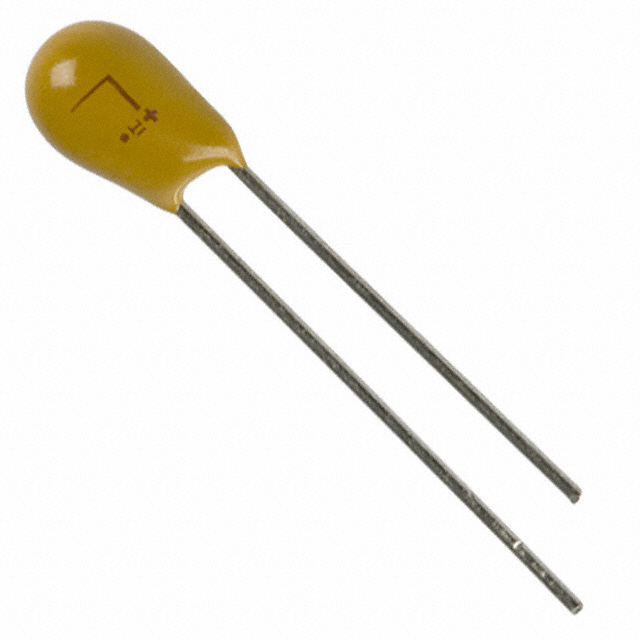

AVX TAP226K025SCS 钽电容, TAP Series, 22 µF, ± 10%, 25 V, 径向引线, 2.5 mm 新
Composed from tantalum solid this capacitor manufactured from has a high capacitance compared to other capacitors. Users like its straight wire form. It can withstand a voltage of 25 VDC. This part has a pitch of 2.5 mm. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 4.4 μA. The TAP226K025SCS solid capacitor has a radial termination style. Its capacitance value is 22uF. It has a tolerance of 10%. This product is 10.5Max mm tall with a diameter of 7Max mm.
额定电压DC 25 V
工作电压 25 VDC
电容 22 µF
等效串联电阻ESR 1.5 Ω
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Through Hole
引脚数 2
封装 Bulk
引脚间距 2.5 mm
长度 10.5 mm
高度 10.5 mm
直径 7.11 mm
封装 Bulk
引脚间距 2.5 mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TAP226K025SCS AVX 艾维克斯 | 当前型号 | 当前型号 |
TAP226K050CCS 艾维克斯 | 类似代替 | TAP226K025SCS和TAP226K050CCS的区别 |
TAP226K010SCS 艾维克斯 | 类似代替 | TAP226K025SCS和TAP226K010SCS的区别 |
TAP226K025DTW 艾维克斯 | 类似代替 | TAP226K025SCS和TAP226K025DTW的区别 |
