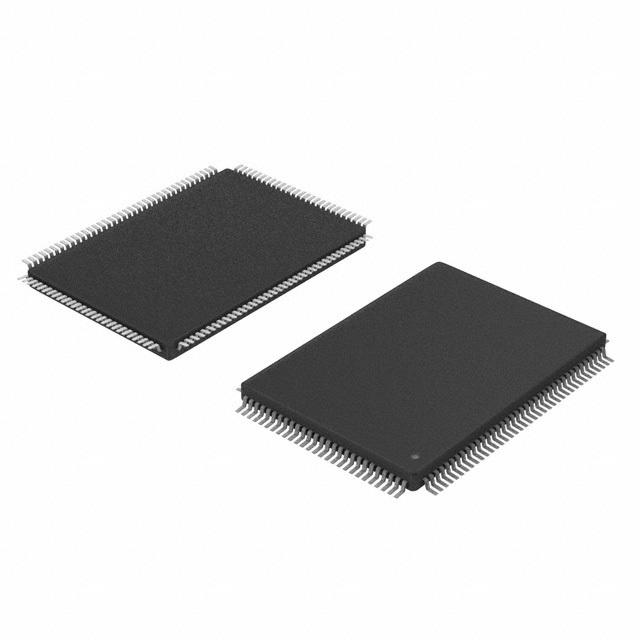

TMS320F2811PBKS

TMS320F2811PBKS图片1
TMS320F2811PBKS图片2
TMS320F2811PBKS图片3
TMS320F2811PBKS图片4
TMS320F2811PBKS图片5
TMS320F2811PBKS图片6
TMS320F2811PBKS图片7
TMS320F2811PBKS图片8
TMS320F2811PBKS图片9
TMS320F2811PBKS图片10
TMS320F2811PBKS概述

数字信号处理器 Digital Signal Processors

Introduction

This section provides a summary of each device’s features, lists the pin assignments, and describes the function of each pin. This document also provides detailed descriptions of peripherals, electrical specifications, parameter measurement information, and mechanical data about the available packaging.

Features

• High-Performance Static CMOS Technology

– 150 MHz 6.67-ns Cycle Time

– Low-Power 1.8-V Core at 135 MHz, 1.9-V Core at 150 MHz, 3.3-V I/O Design

• JTAG Boundary Scan Support1

• High-Performance 32-Bit CPU TMS320C28x™

– 16 x 16 and 32 x 32 MAC Operations

– 16 x 16 Dual MAC

– Harvard Bus Architecture

– Atomic Operations

– Fast Interrupt Response and Processing

– Unified Memory Programming Model

– 4M Linear Program/Data Address Reach

– Code-Efficient in C/C++ and Assembly

– TMS320F24x/LF240x Processor Source Code Compatible

• On-Chip Memory

– Flash Devices: Up to 128K x 16 Flash Four 8K x 16 and Six 16K x 16 Sectors

– ROM Devices: Up to 128K x 16 ROM

– 1K x 16 OTP ROM

– L0 and L1: 2 Blocks of 4K x 16 Each Single-Access RAM SARAM

– H0: 1 Block of 8K x 16 SARAM

– M0 and M1: 2 Blocks of 1K x 16 Each SARAM

• Boot ROM 4K x 16

– With Software Boot Modes

– Standard Math Tables

• External Interface 2812

– Over 1M x 16 Total Memory

– Programmable Wait States

– Programmable Read/Write Strobe Timing

– Three Individual Chip Selects

• Endianness: Little Endian

• Clock and System Control

– Dynamic PLL Ratio Changes Supported

– On-Chip Oscillator

– Watchdog Timer Module

• Three External Interrupts

• Peripheral Interrupt Expansion PIE Block That Supports 45 Peripheral Interrupts

• Three 32-Bit CPU-Timers

• 128-Bit Security Key/Lock

– Protects Flash/ROM/OTP and L0/L1 SARAM

– Prevents Firmware Reverse-Engineering

• Motor Control Peripherals

– Two Event Managers EVA, EVB

– Compatible to 240xA Devices

• Serial Port Peripherals

– Serial Peripheral Interface SPI

– Two Serial Communications Interfaces SCIs, Standard UART

– Enhanced Controller Area Network eCAN

– Multichannel Buffered Serial Port McBSP

• 12-Bit ADC, 16 Channels

– 2 x 8 Channel Input Multiplexer

– Two Sample-and-Hold

– Single/Simultaneous Conversions

– Fast Conversion Rate: 80 ns/12.5 MSPS

• Up to 56 General-Purpose I/O GPIO Pins

• Advanced Emulation Features

– Analysis and Breakpoint Functions

– Real-Time Debug via Hardware

• Development Tools Include

– ANSI C/C++ Compiler/Assembler/Linker

– Code Composer Studio™ IDE

– DSP/BIOS™

– JTAG Scan Controllers1

• Low-Power Modes and Power Savings

– IDLE, STANDBY, HALT Modes Supported

– Disable Individual Peripheral Clocks

TMS320F2811PBKS中文资料参数规格
技术参数

频率 150 MHz

时钟频率 150 MHz

RAM大小 18K x 16

FLASH内存容量 262144 B

UART数量 2

模数转换数ADC 1

工作温度Max 125 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

引脚数 128

封装 LQFP-128

外形尺寸

封装 LQFP-128

物理参数

工作温度 -40℃ ~ 125℃ TA

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 3A991.a.2

数据手册
