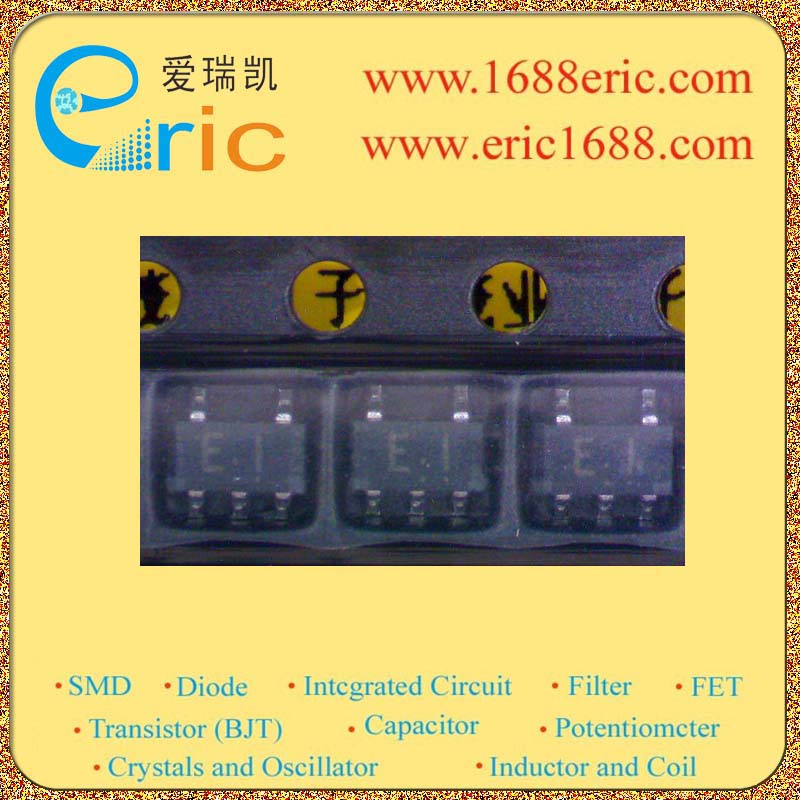

TC7S00F

TC7S00F

逻辑类型Logic Type| 与非门 NAND Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 2V~6V 静态电流IqCurrent - Quiescent Max| 1µA 输出高，低电平电流Current - Output High, Low| -2.6mA,2.6mA 低逻辑电平Logic Level - Low| 0.5V~1.8V 高逻辑电平Logic Level - High| 1.5v~4.2V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 17ns @ 6V，50pF Description & Applications| 2-INPUT NAND GATE ;The is a high speed CMOS 2-INPUT NAND GATE fabricated with silicon gate C2mos technology 描述与应用| 2输入与非门;TC7S00F是一种高速CMOS2输入与非门制作与硅栅C2MOS技术
